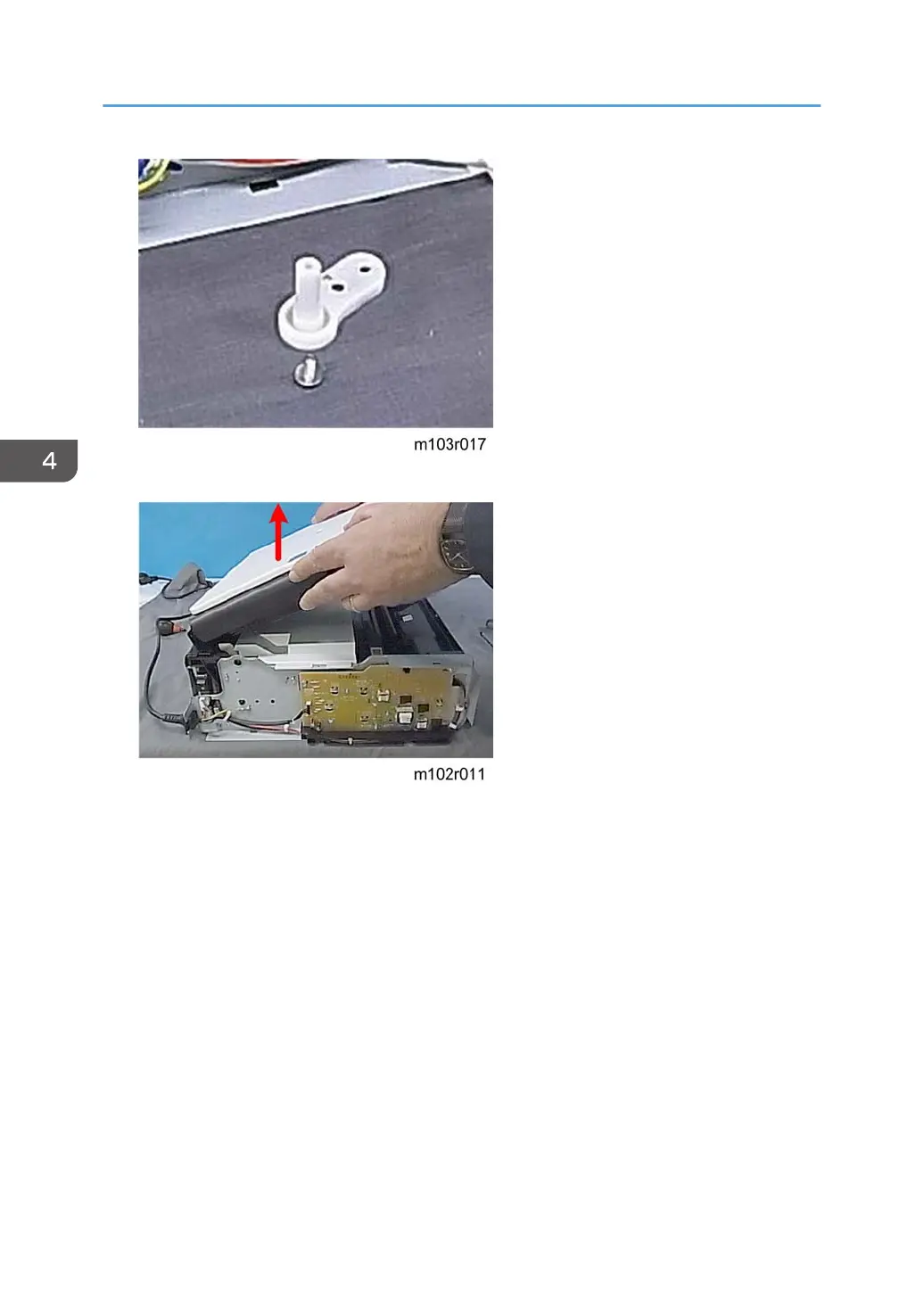

7. The hinge pins are identical. Either pin can be re-installed on either side.

8. Lift the flatbed unit off the top of the machine.

4. Replacement and Adjustments

58
