Ricoh Aficio SP 100SF - Page 90

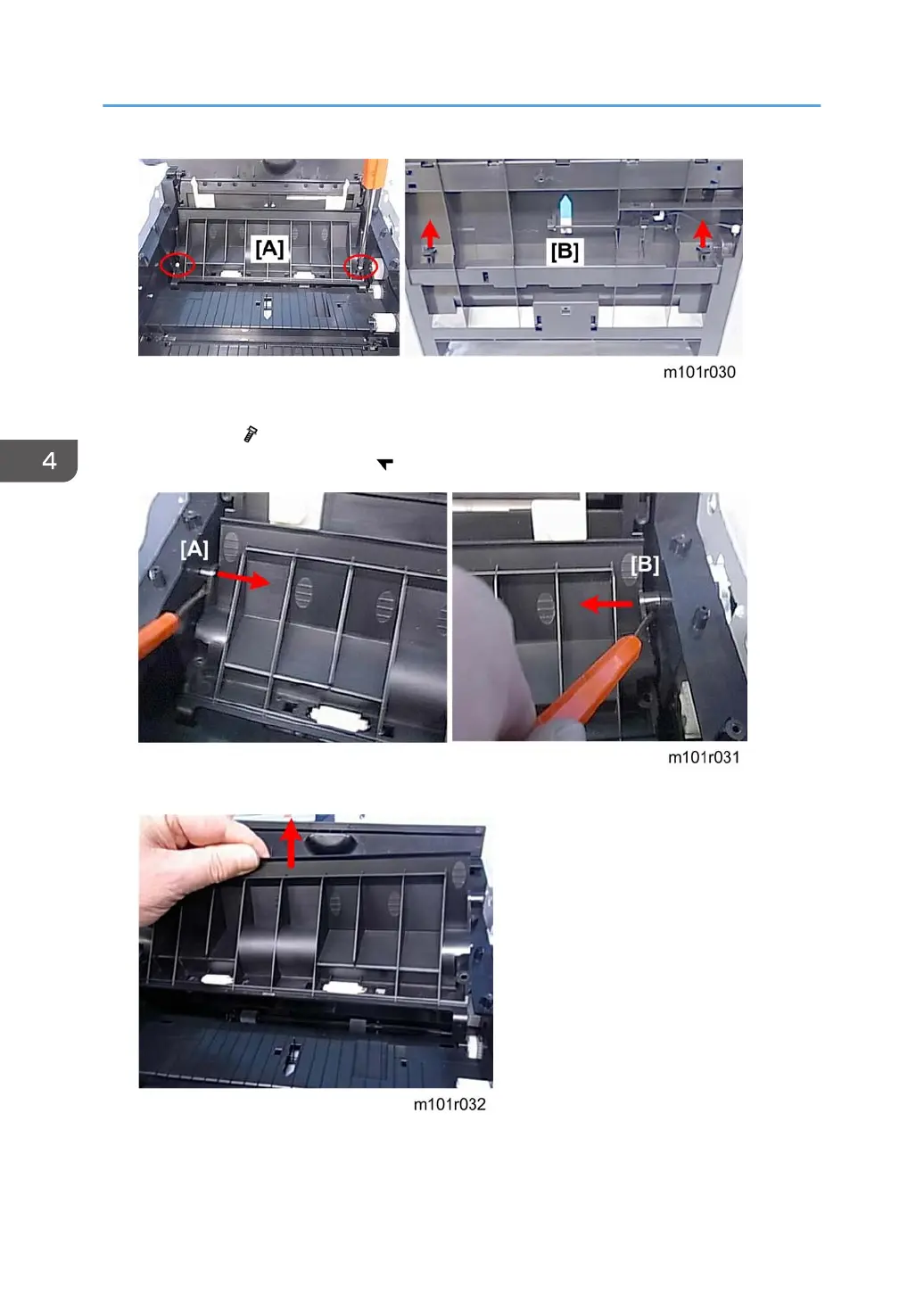

4. Disconnect the feed guide:
[A] At the top ( x2)
[B] On the bottom of the machine ( x2)
5. At the top, disconnect the arm pegs on the left [A] and on the right [B].
6. Lift the feed guide out of the machine.
4. Replacement and Adjustments
88
