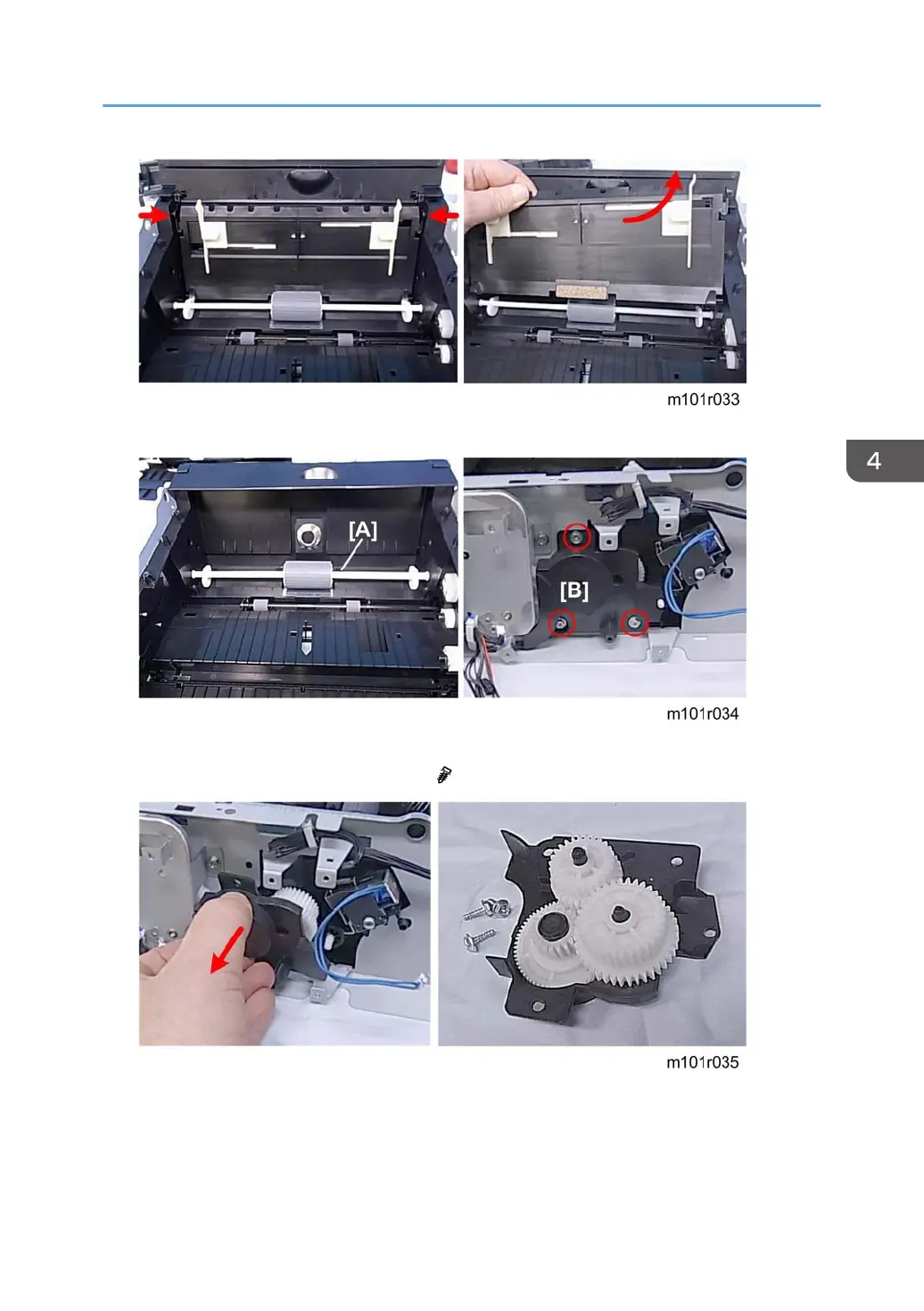

7. Release the arm pegs on the left and right, and then remove the paper tray.
8. The pickup roller [A] in the center of the paper path is permanently attached to its shaft.
9. On the right, disconnect the gear train [B] ( x3).
10. Remove the gear train and lay it on a flat surface as shown above to prevent the gears from falling
off.
