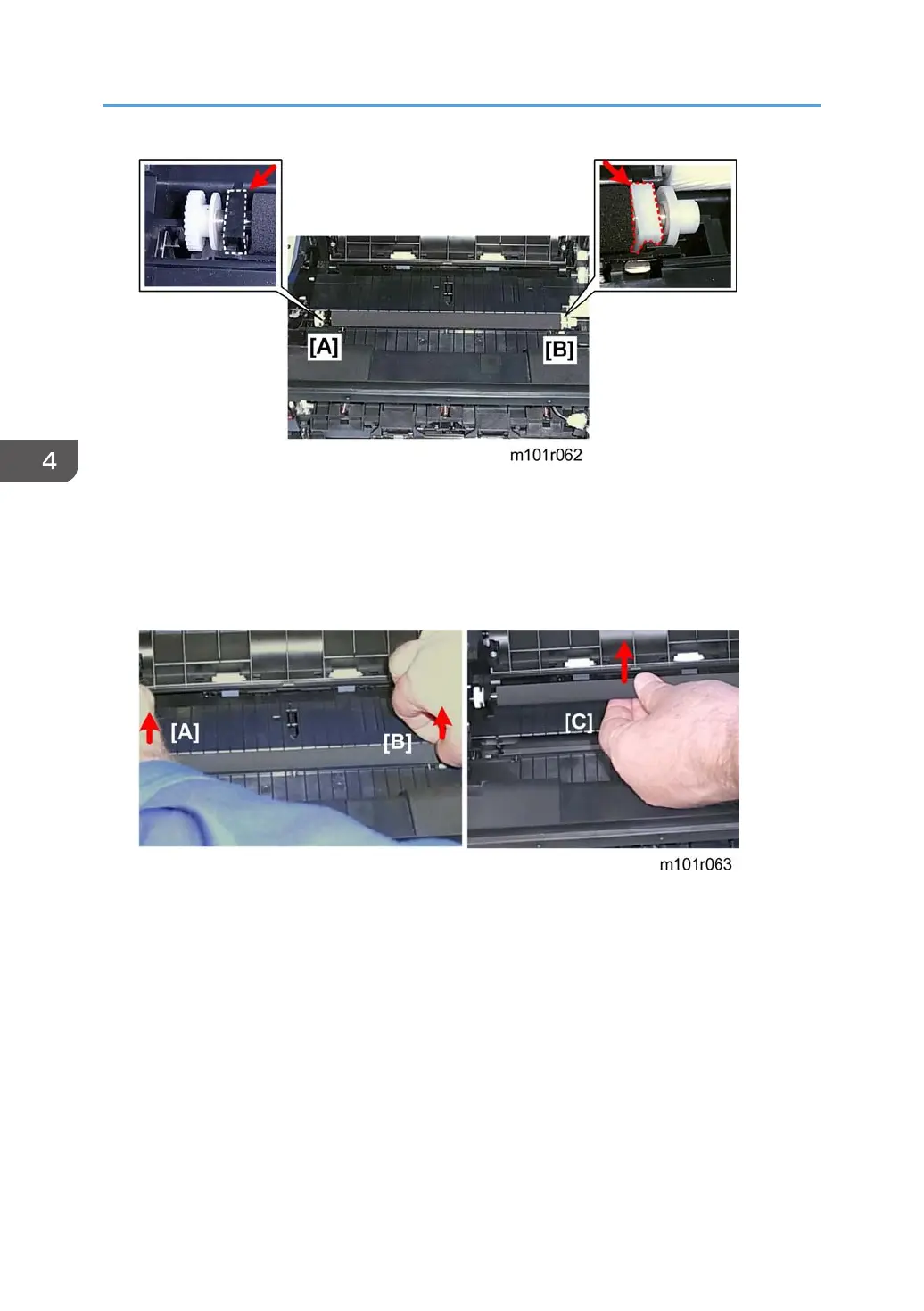

1. Before you remove the transfer roller:
• The collar on the left end of the roller [A] is black.
•
The collar on the right end of the roller [B] is white.
• The transfer roller must be installed the same way, with the black collar on the left and white
collar on the right.
2. The collars are set in grooves. Pull up on both ends of the transfer roller [A] and [B] to free the
collars.
3. Lift the roller [C] out and remove it.
4. Replacement and Adjustments
94
