LCIT RT3030

D146/D147/D148/D149/D150 2-44 SM

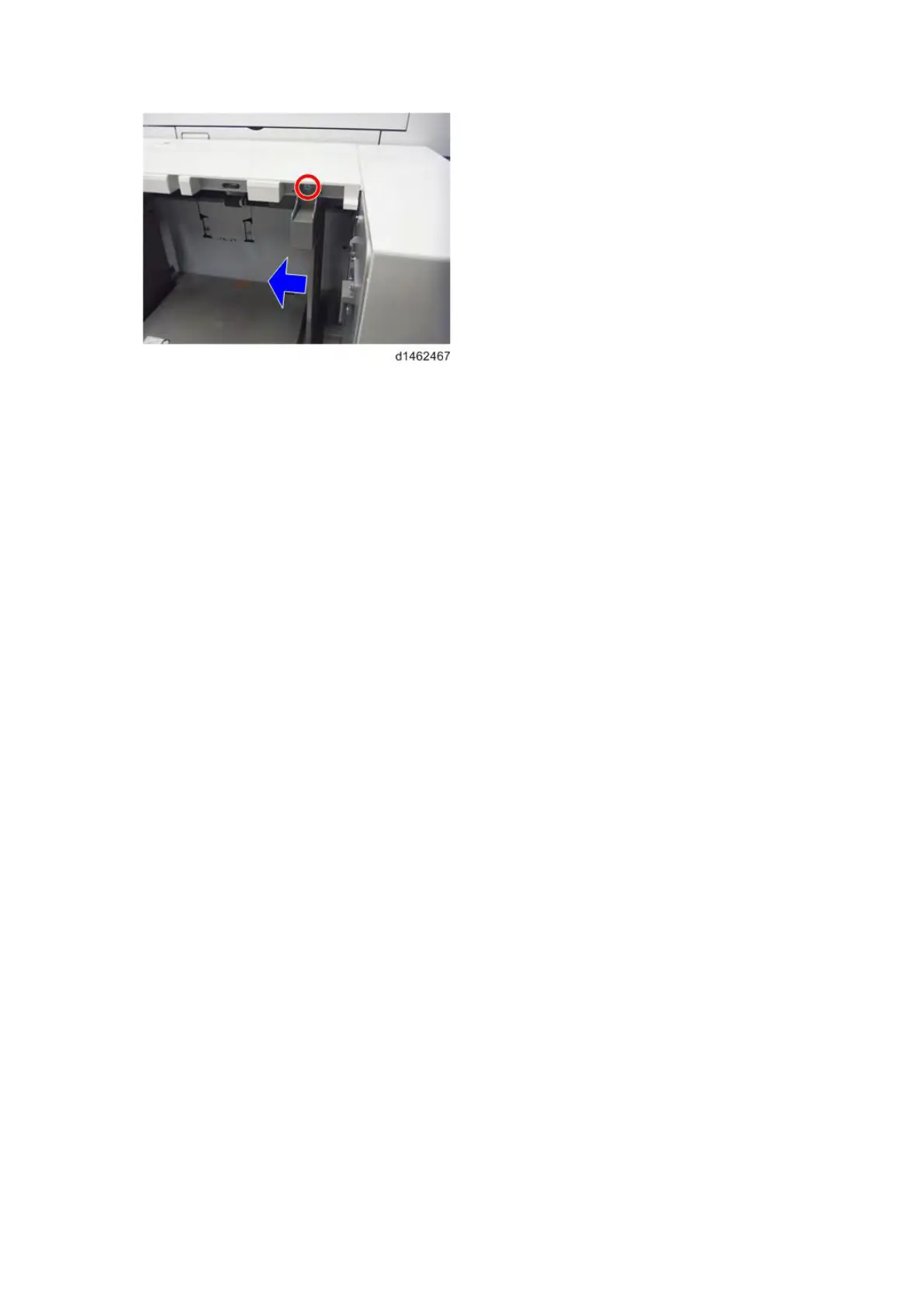

3. Change the paper size according to the new side fence position.

SP5-181-017 (Size Adjust LCT)

0: A4, 1: LT, 2: B5
