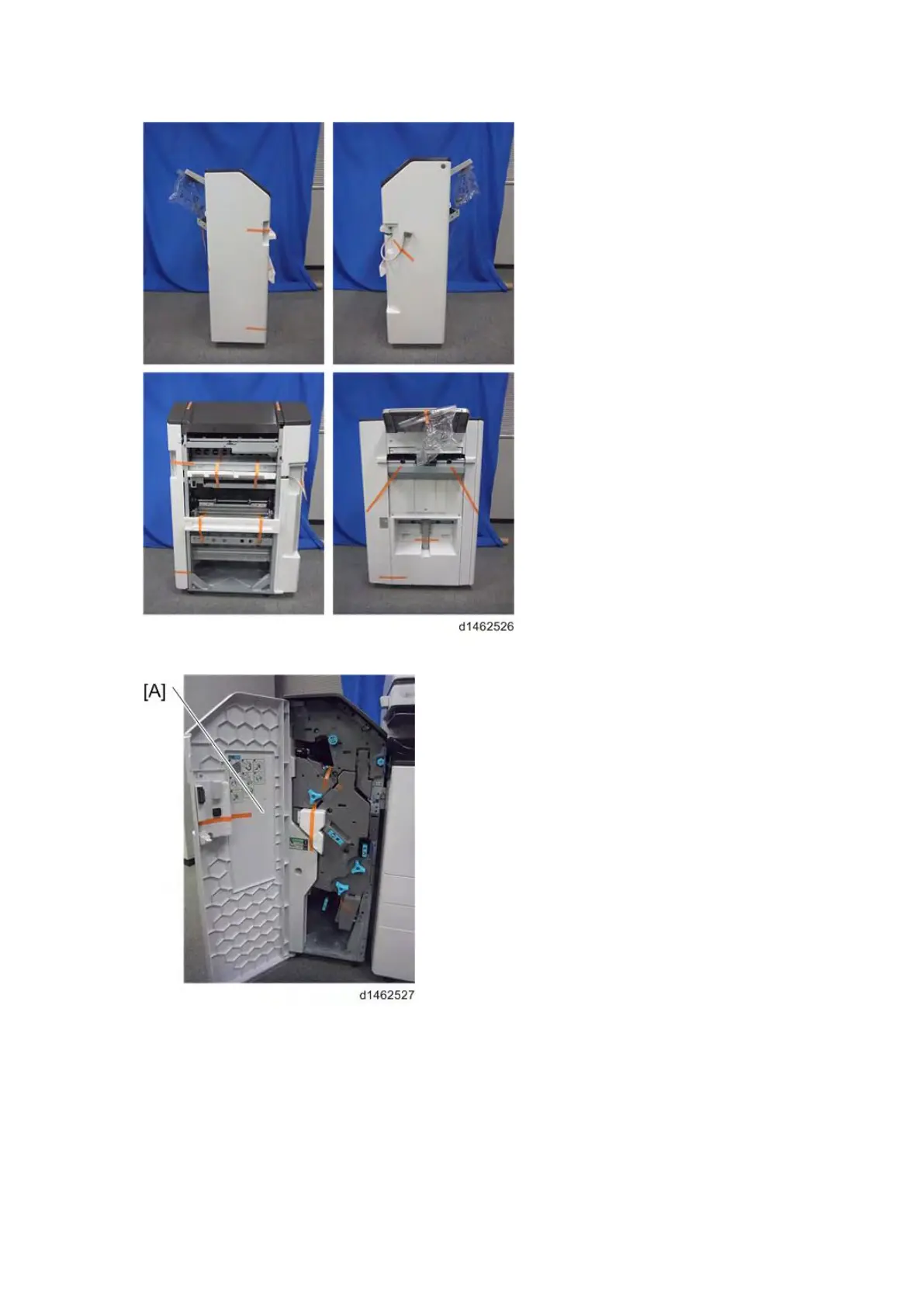

2. Open the front cover [A], and remove the filament tape and packing materials.

3. Pull out the saddle stitch unit [A] or stapling unit, and remove the filament tape and packing

materials.
