Shift Motor

D691 2 SM

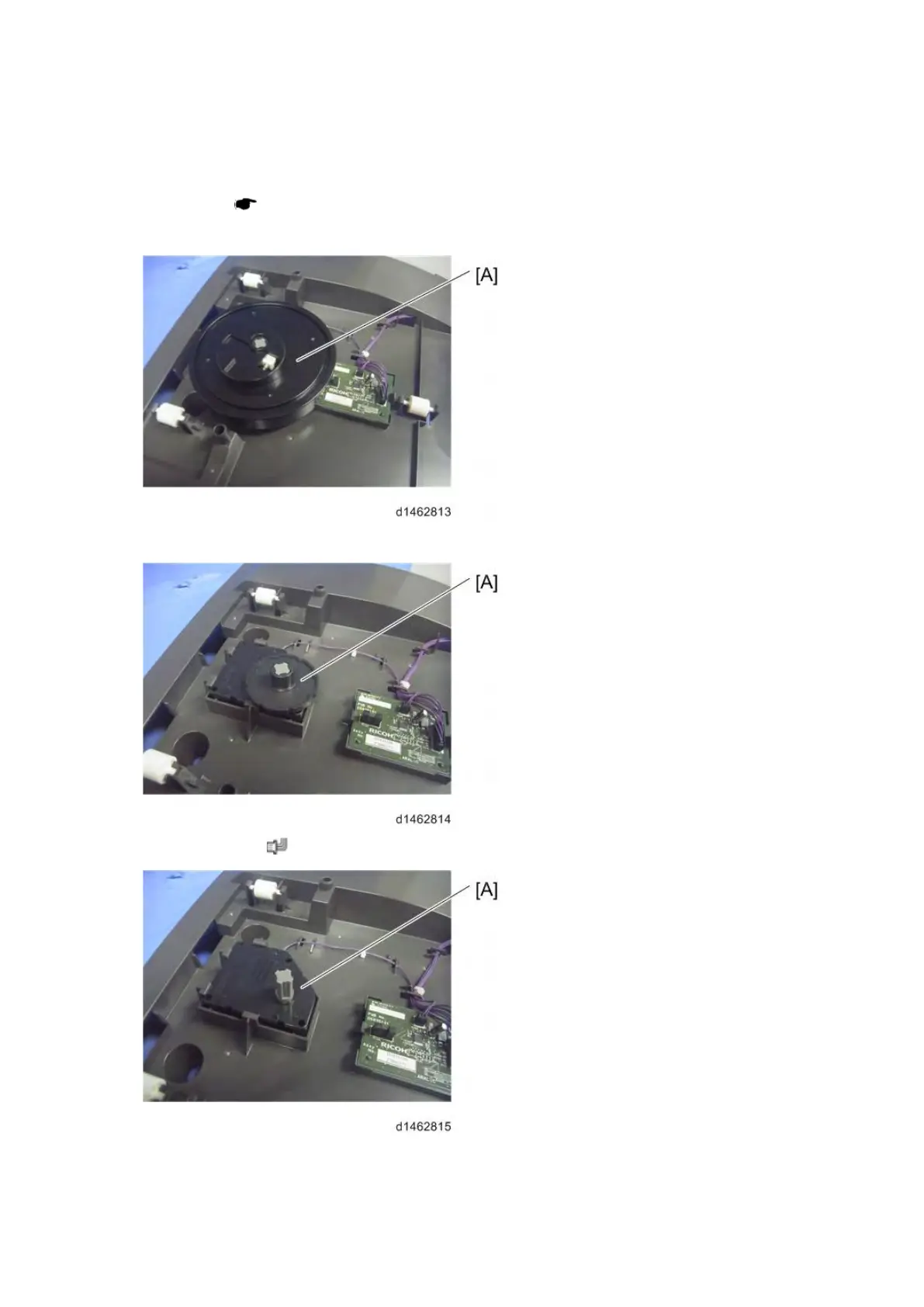

1.2 SHIFT MOTOR

1. Upper tray ( page 1 "Controller Board")

2. Interlocking plate [A]

3. Rotating plate [A]

4. Shift motor [A] (

×1)
