Upper Paper Exit Sensor

D725 6 SM

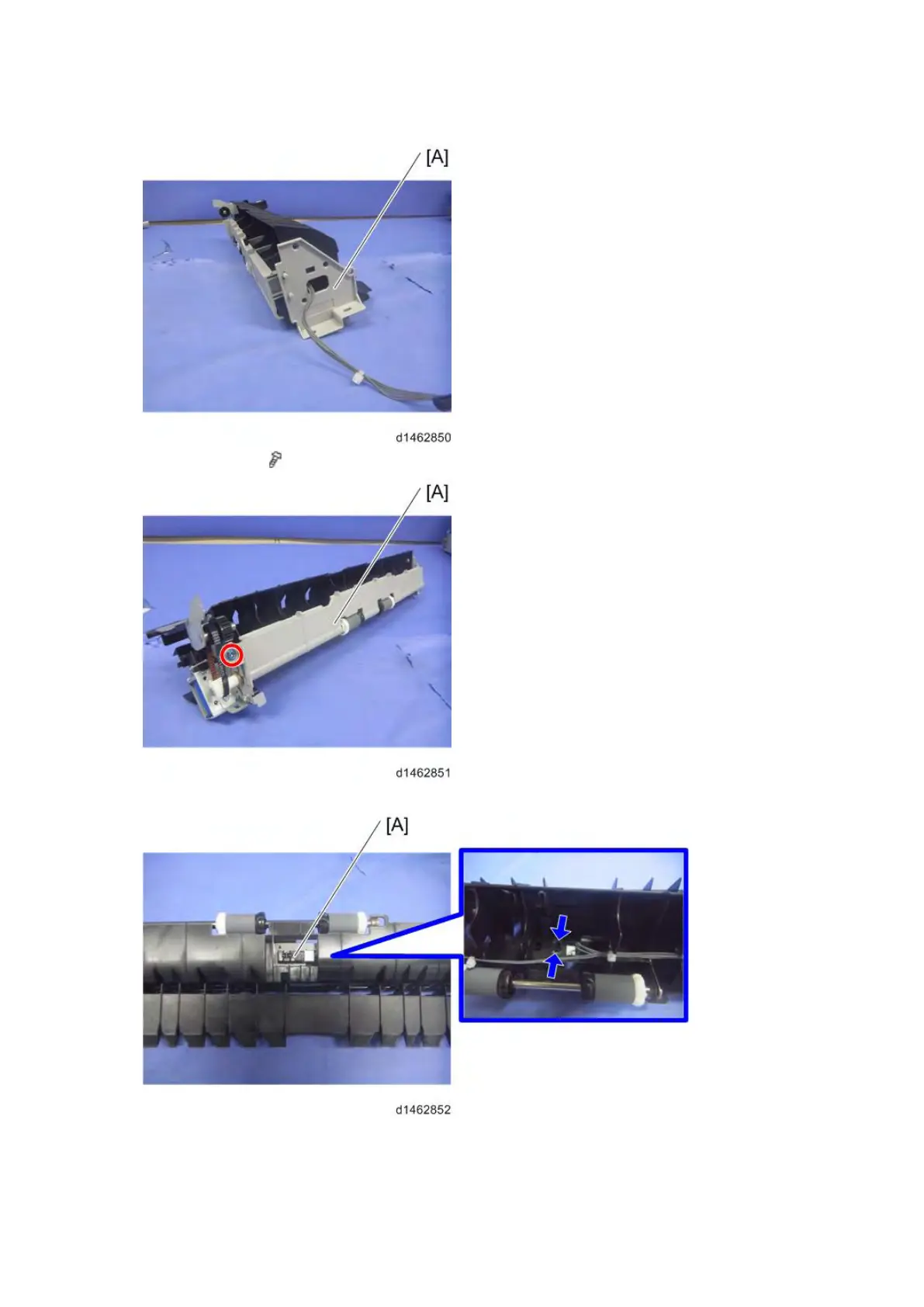

8. Guide plate [A]

9. Guide plate [A] (

×1)

10. Upper paper exit sensor [A]
