Scanner Unit

D146/D147/D148/D149/D150 4-32 SM

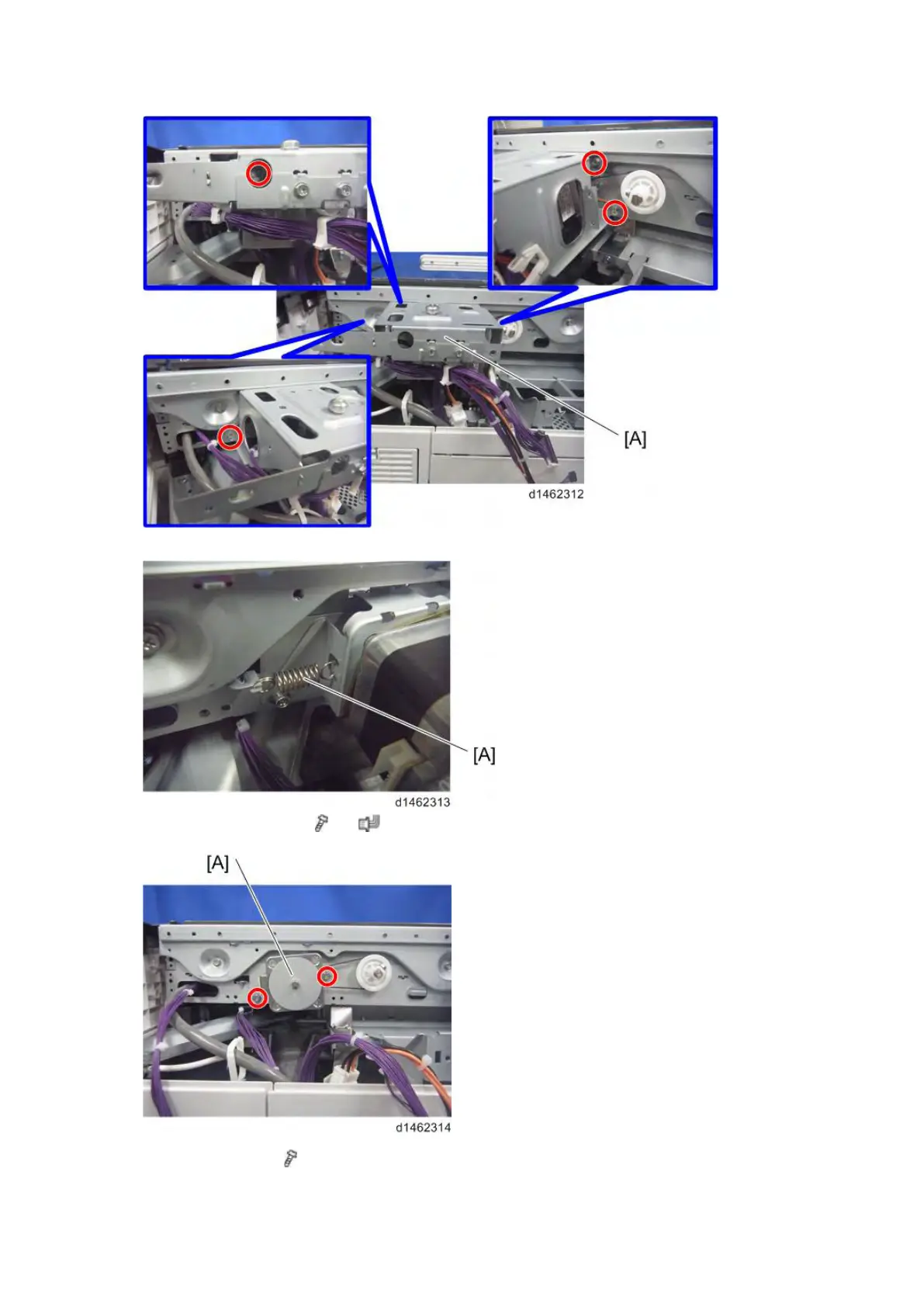

4. Spring [A]

5. Scanner motor unit [A] (

×2, ×1)

6. Scanner motor [A] (

×2)
