Ricoh D148 - Page 337

Scanner Unit
SM 4-43 D146/D147/D148/D149/D150
Replacement
and Adjustment

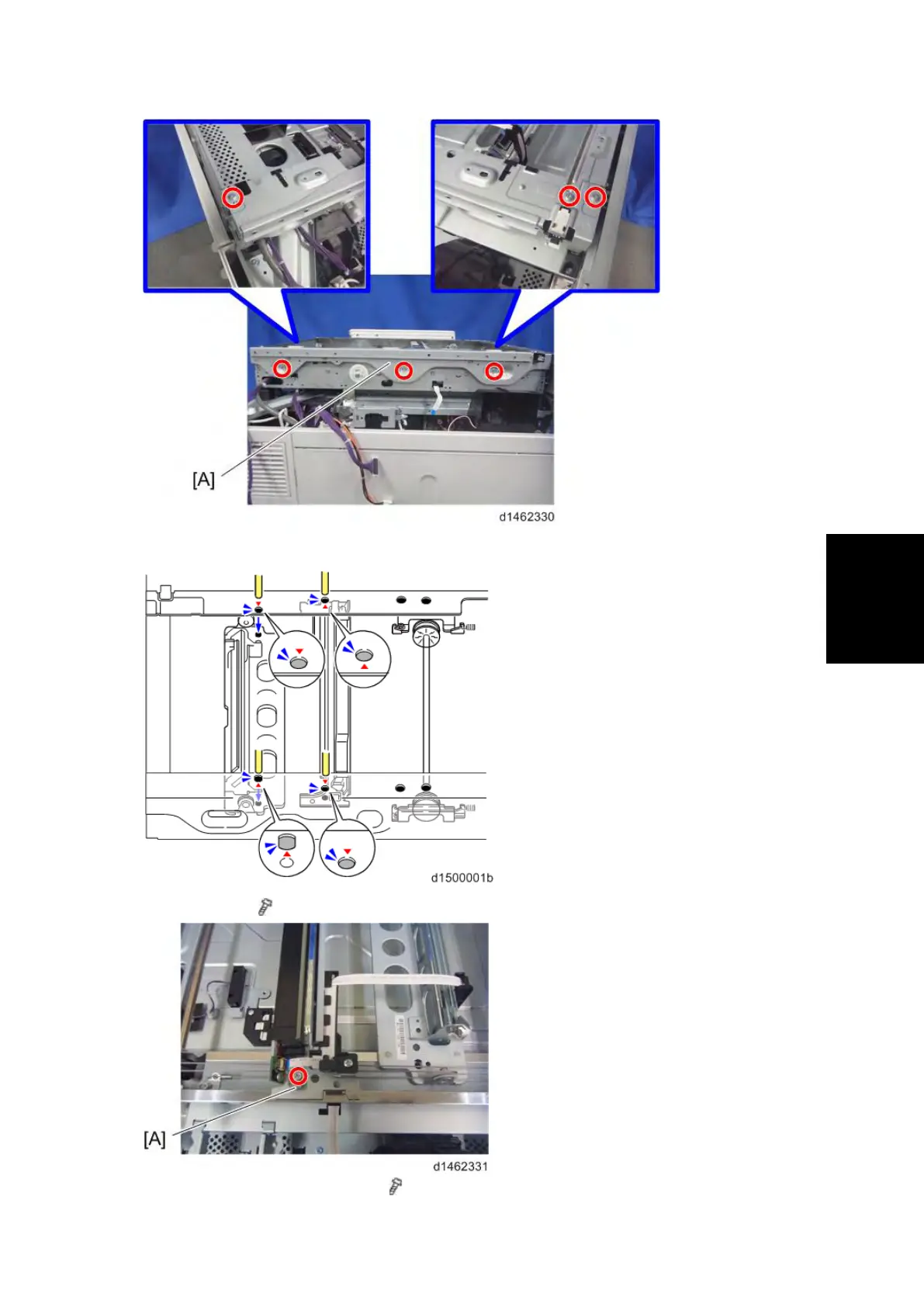

7. Move to the set position of the fixing pin for the first carriage.
8. Wire clamp [A] (
×1)
9. Wire fixing bracket [A], spring [B] (
×1)
