Drive Unit

SM 4-93 D146/D147/D148/D149/D150

Replacement

and Adjustment

1. Harness guide (page 4-92 "M")

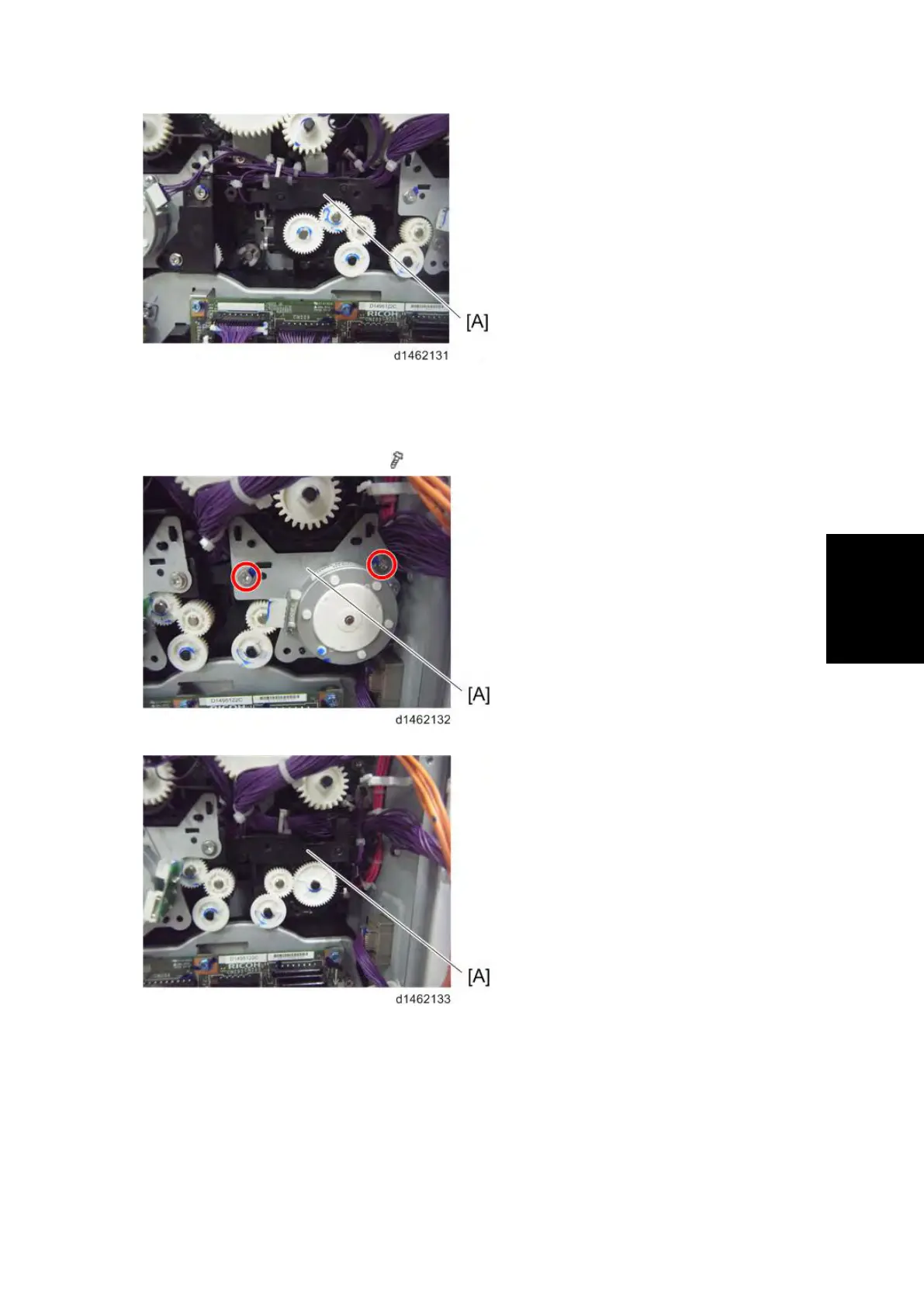

2. Toner transport motor unit (Y) [A] ( ×3)

3. Hopper (Y) [A]
