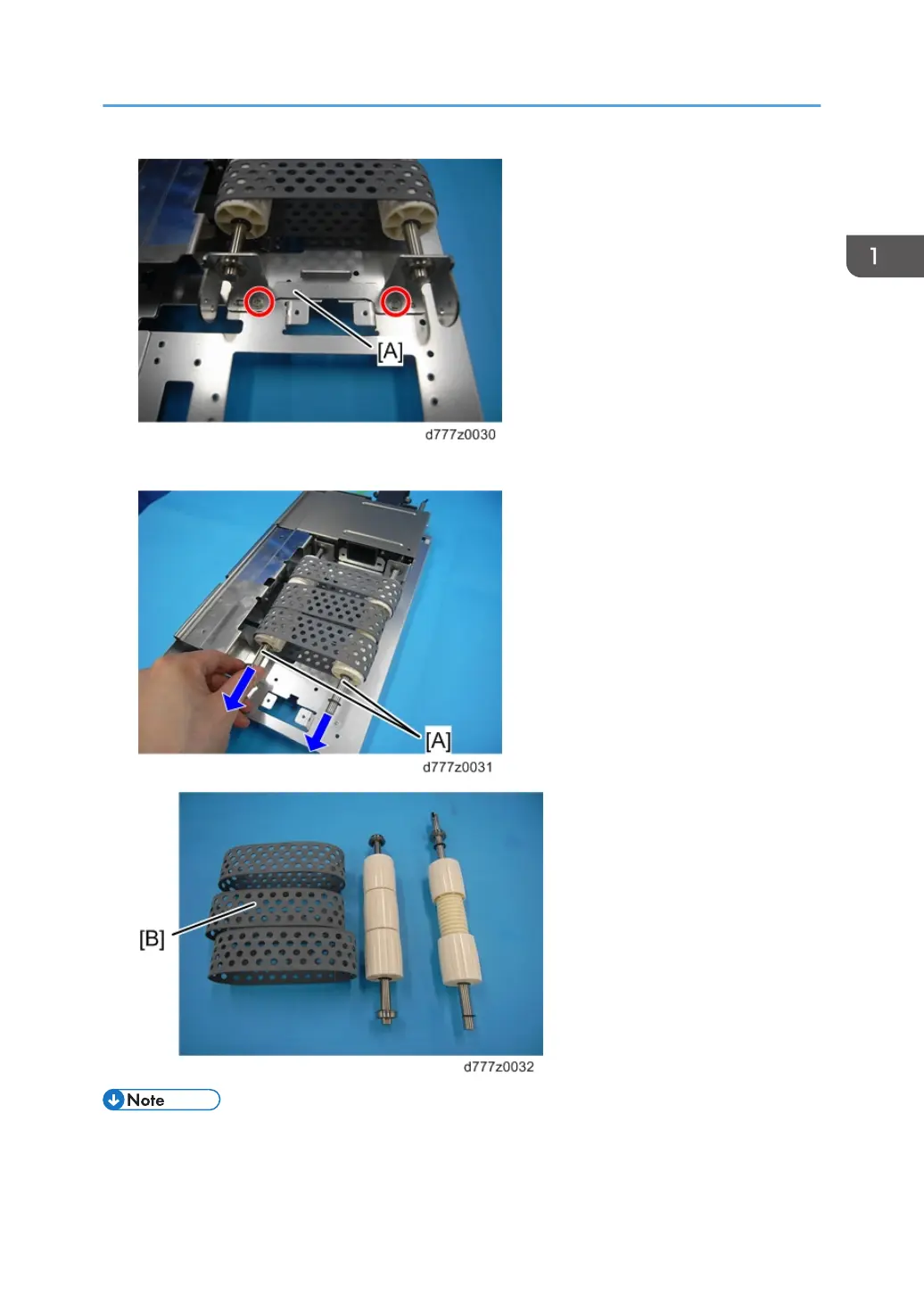

6. Remove the belt shaft [A] and the paper feed belt [B].
• During installation, turn the shaft to correct belt deflection before installing the chamber.
• When all parts have been assembled, turn the shaft once more to check for deflection, resistance
and other abnormalities before replacing the paper tray.
Paper Feed Unit (Trays 1, 2)
21
