8. Ink Path Guide RICOH Ri 2000 User Manual
202

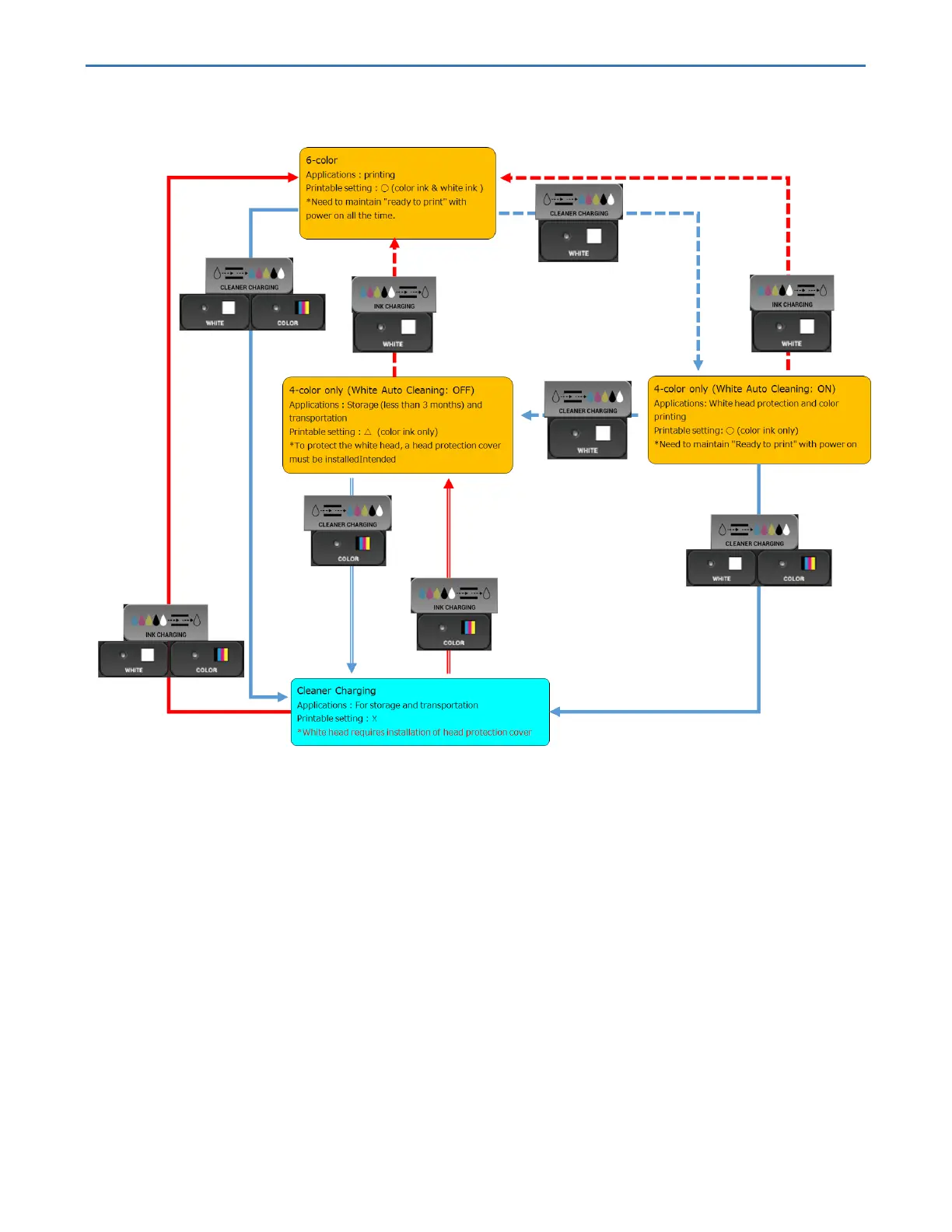

State transition diagram for each mode
【Explanation of line colors and types in the figure】
[Color of the lines] Specify whether the ink filling operation or the cleaner charging operation is performed.
Red line：Ink filling operation by ink cartridge
Blue line： Cleaner charging operation using a cleaning cartridge
[Line type] Indicates the printheads for which the ink filling and cleaner charging operations are to be
performed.
Solid line ：Color print head and white print head
Dotted line ： White print head
Double line ：Color print head
To Next Page
