Chapter 3 Remote Control RIGOL
User’s Guide for DP1116A
3-7

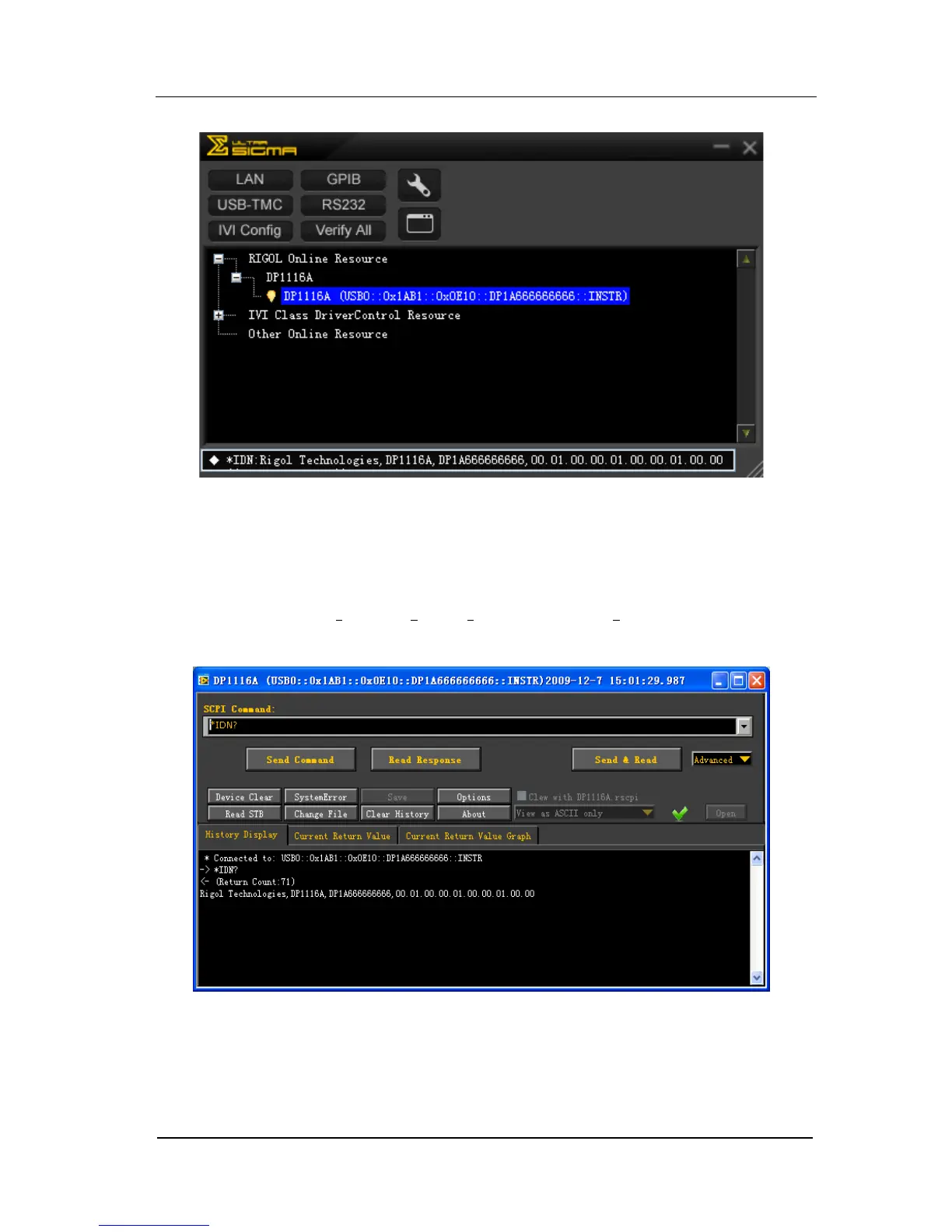

Figure 3-8 Available USB devices
(5) Communication test
Right click “DP1116A (USB0::0x1AB1::0x0E10::DP1A666666666::INSTR)” and
select “Instrument Common RIGOL SCPI ControlPanel V1” to open the remote
control panel and send commands or read the data, see figure below:
Figure 3-9 Read and write commands through USB
