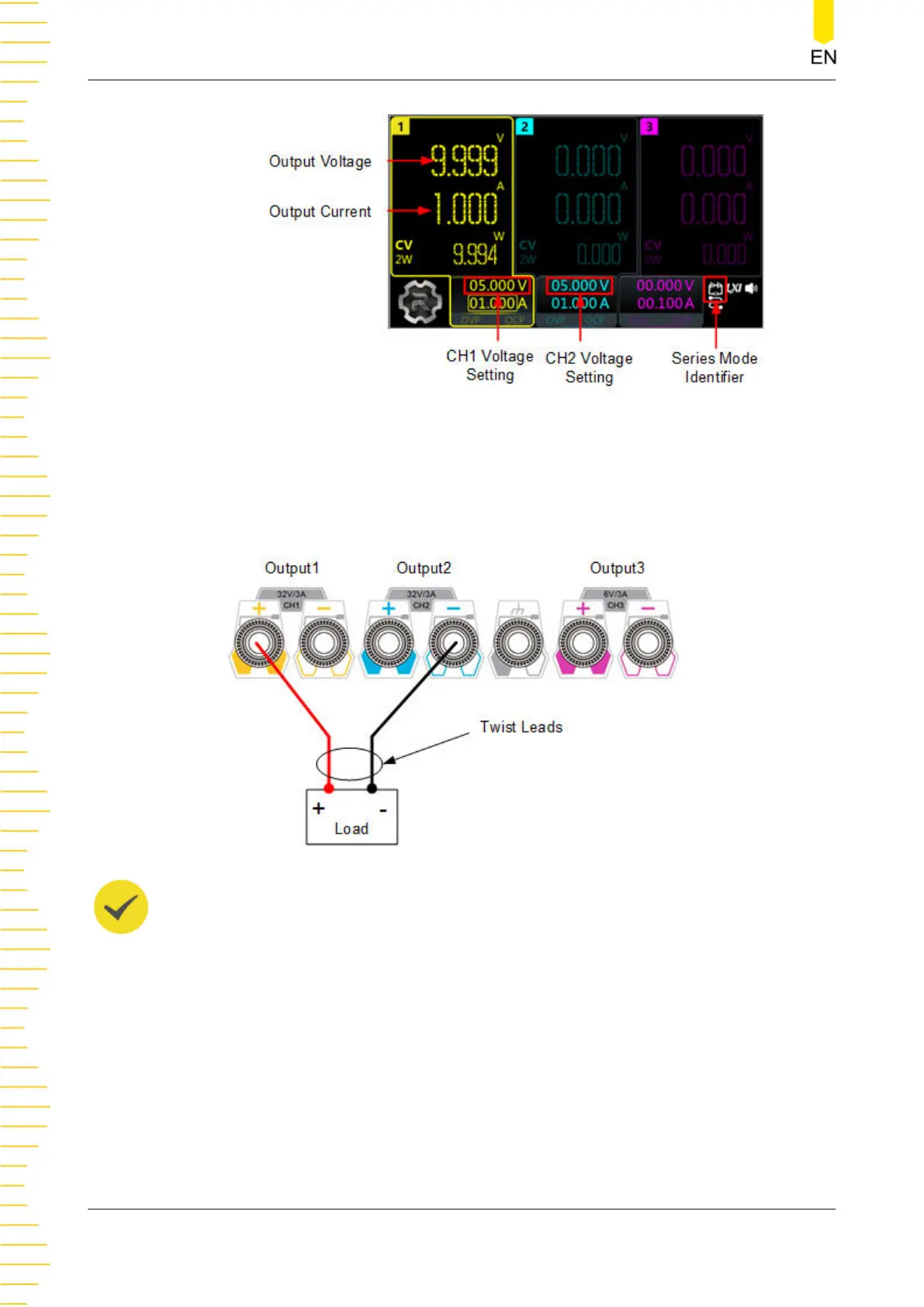

Figure 8.1 Series Output Interface

The figure below shows how to connect front output terminals to a single load in

internal series mode. Please refer to

Output Connection

for internal parallel

connection.

TIP

• In internal series/parallel connections, CH1 and CH2 always have identical voltage and

current settings.

• The output voltage displayed in CH1 meter view is twice the voltage setting. CH2 has no

reading.

• In internal series mode, the output voltage at the terminal is twice the voltage setting. To

avoid damage to the load, please set proper voltage values

External Series Connections

This series power supply supports external series connection for multiple channels

(from a single power supply or multiple power supplies). The figure below illustrates

how to connect two channels when in external series mode.

Series/Parallel Connections
