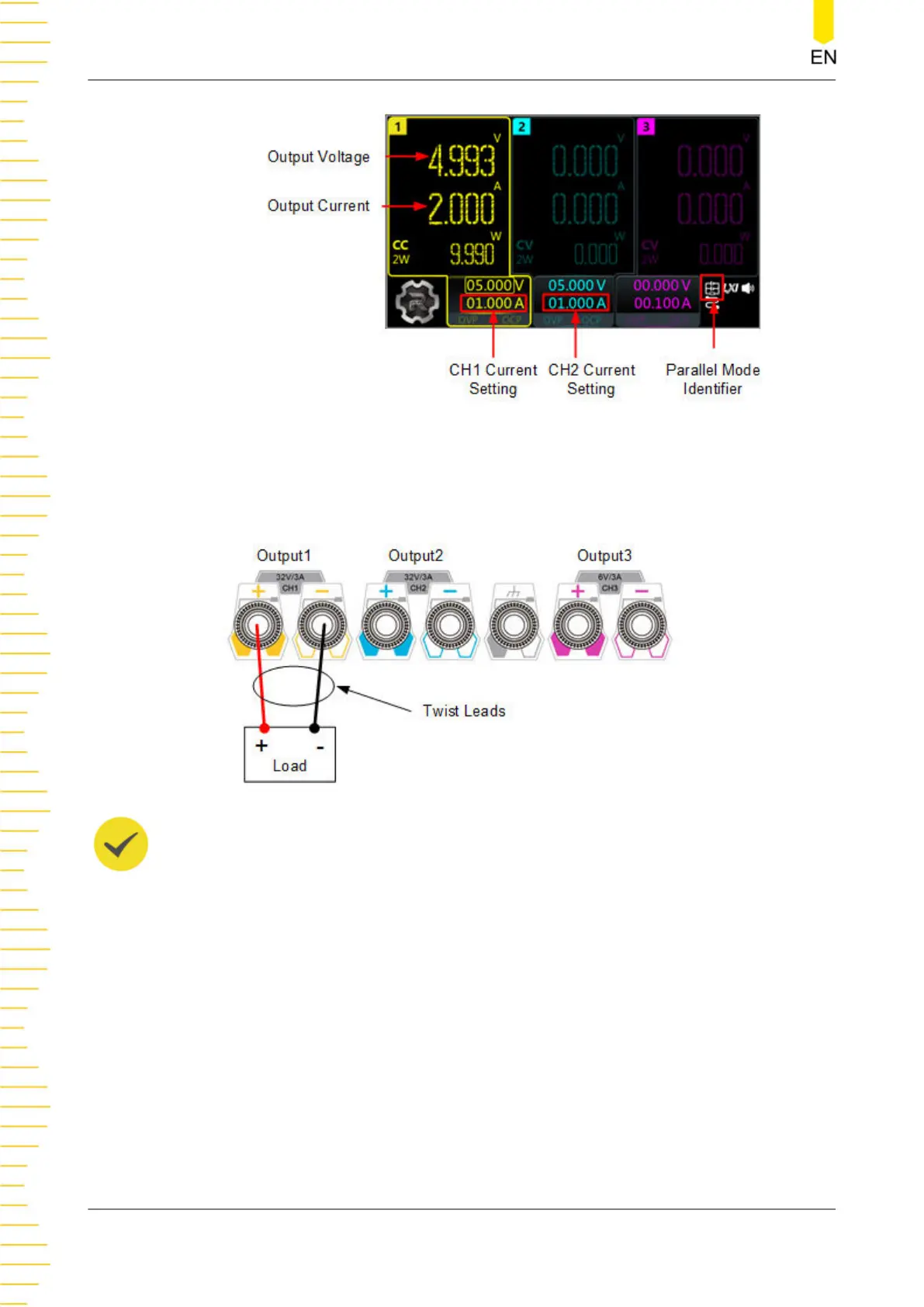

Figure 8.3 Parallel Output Interface

The figure below shows how to connect front output terminals to a single load in

internal parallel mode. Please refer to

Output Connection

for channel connection.

TIP

In internal series/parallel connections, CH1 and CH2 always have identical voltage and current

setting value.

External Parallel Connections

This series power supply supports external parallel connection for multiple channels

(from a single power supply or multiple power supplies). The figure below illustrates

how to connect two outputs in external parallel.

Series/Parallel Connections
