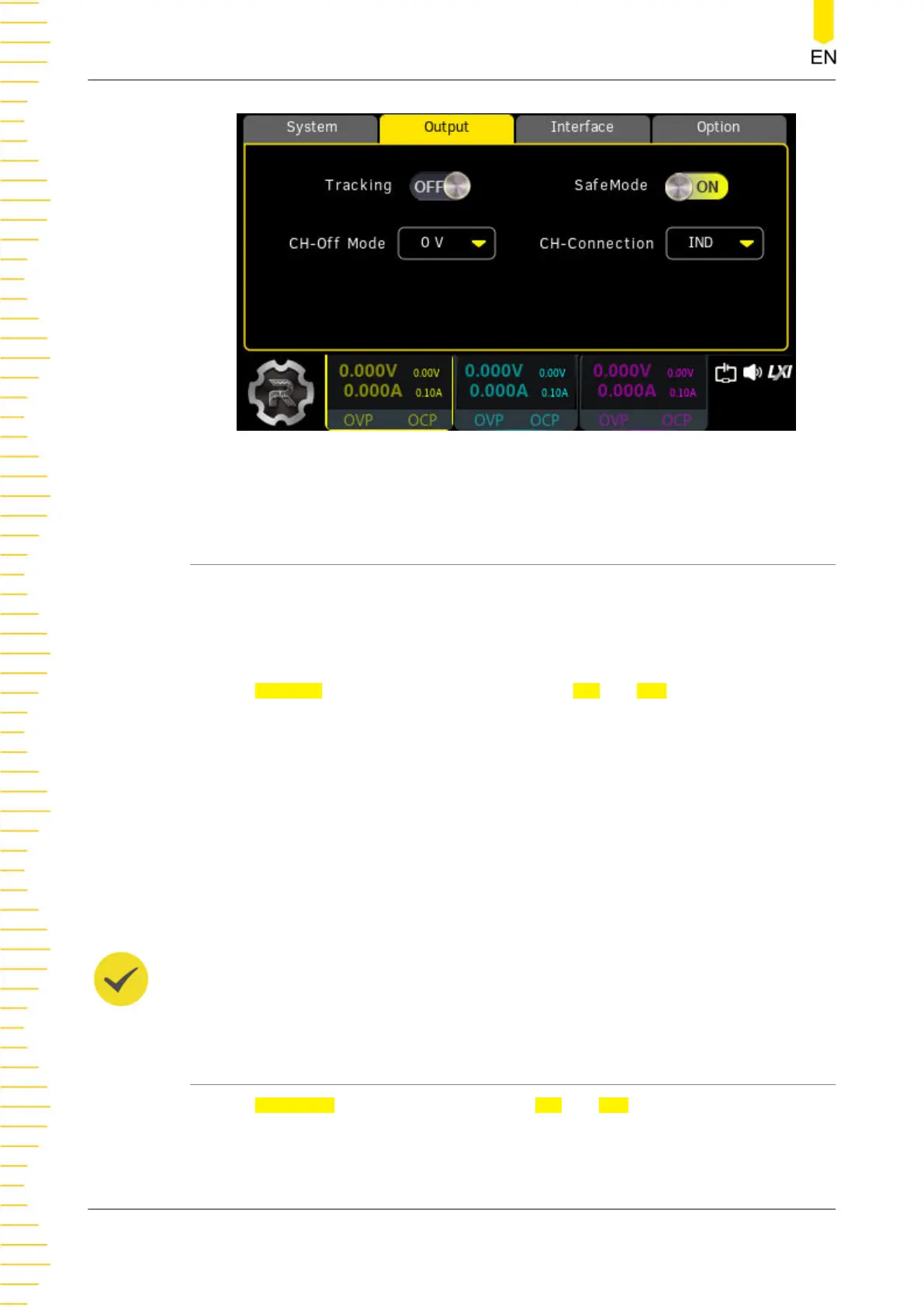

Figure 13.4 Output Settings Interface

13.2.1 Track Mode

The tracking function is usually used to provide symmetrical voltages needed by

operational amplifiers and other circuits. For this series power supply, the tracking

function is available for CH1 and CH2. You can enable or disable the track mode for

those two channels.

Tap the

Tracking on/off button to toggle between ON and OFF to enable or disable

the track mode.

• ON: Enables the track mode. For the two channels (CH1 and CH2) that support

this mode, changes made on one channel (voltage/current setting value,

OVP/OCP level and on/off status) is applied to the other channel.

• OFF: Disables the track mode. For the two channels (CH1 and CH2) that support

the track function, changes made on one channel will not affect the other.

TIP

The tracking function only tracks the voltage/current setting value. The actual output voltage/

current will not be affected.

13.2.2 Safe Mode

Tap the SafeMode button to toggle between ON and OFF to enable or disable the

safe mode.

• ON: Enables the safe mode. When CH1 and CH2 are connected in series

(internal) and the sum of their voltages is higher than 60 V, a prompt message
