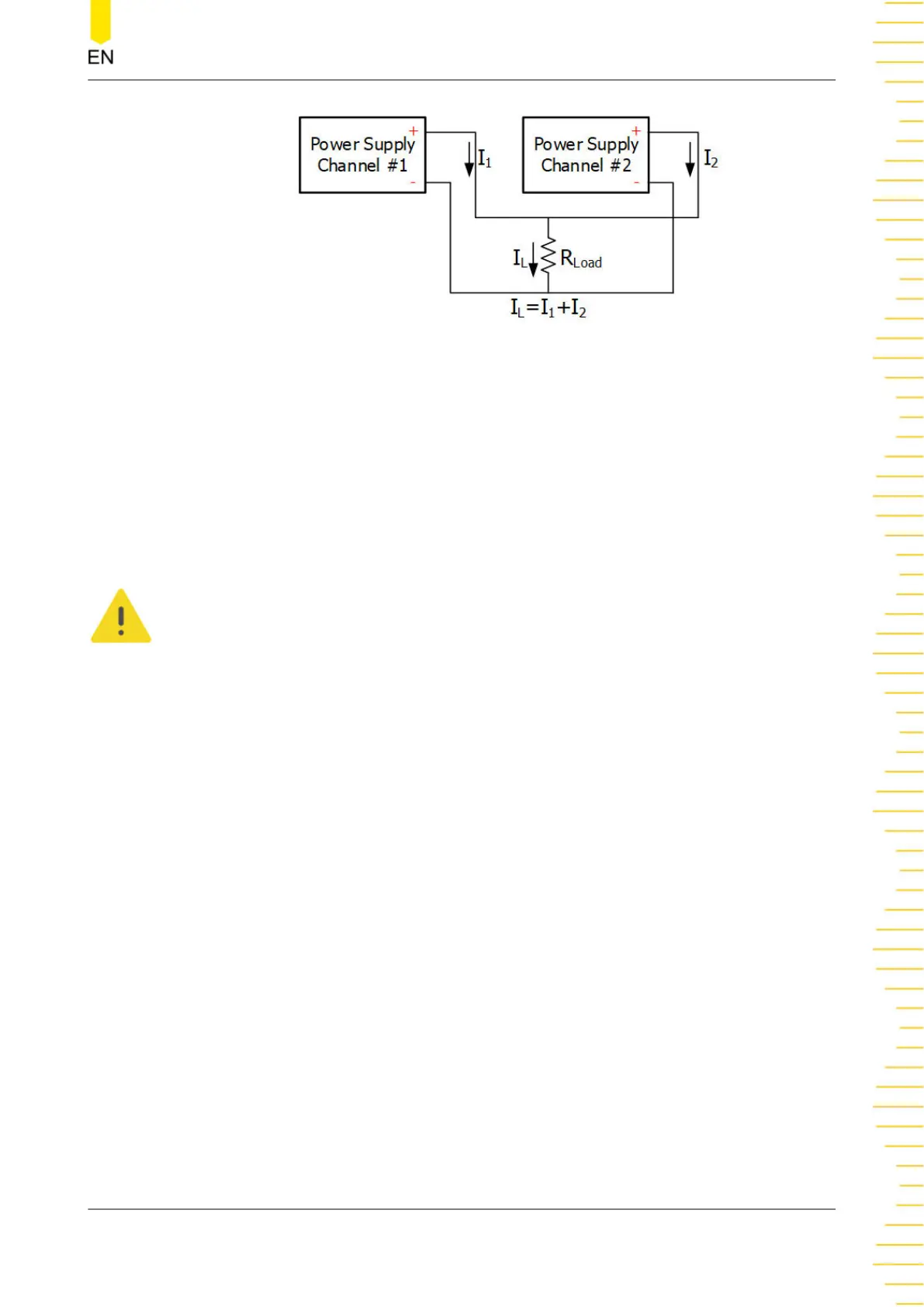

Figure 8.4 External Parallel Circuit

Operation Procedures:

1. Connect the power supply to load as shown in the figure above. Pay attention to

the polarity when making connections.

2. Set proper parameters for each channel (refer to

Constant Voltage Output

and

Constant Current Output

) and turn on the output of each channel. All channels can

work in CV mode or CC mode.

CAUTION

All the channels can work in CV or CC mode according to the actual need of the load.

Series/Parallel Connections
