• OutOn: Turns on the output of the channel currently selected as the source
under control when the trigger condition is met.
• OutOff: Turns off the output of the channel currently selected as the source
under control when the trigger condition is met.
• OutFlip: Toggles the channel output state. That is, turns off the channel when the
current channel is on, or turns on the channel when the current channel is off.
11.2 Trigger Output
The specified data line outputs a high/low level signal when the control source turns
on the output.
Tap
> Trigger and select Trigger Output to access the trigger output setting
interface, as shown in the figure below.

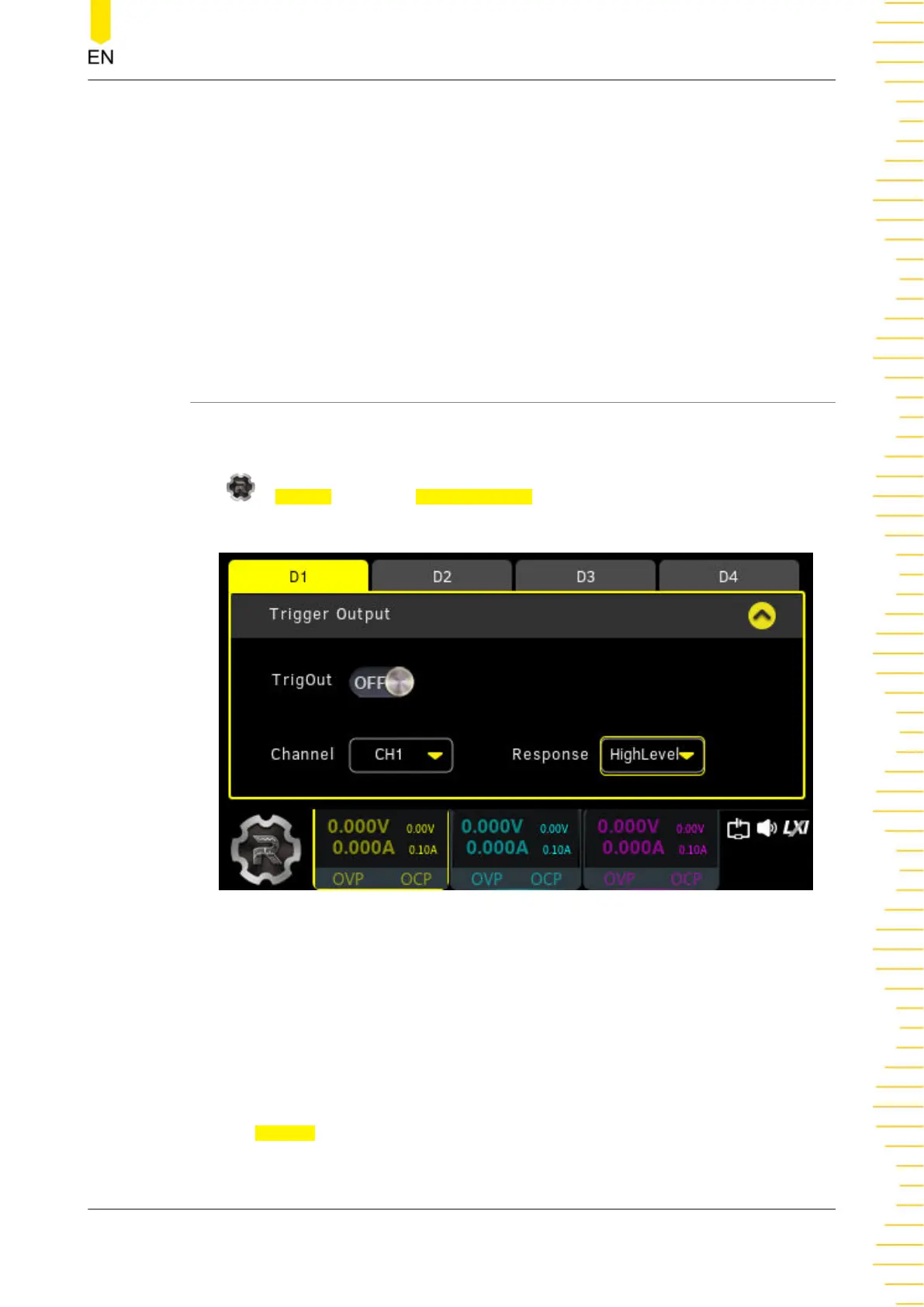

Figure 11.4 Trigger Output Setting Interface
Data Line
Select a data line (D1, D2, D3, or D4) you wish to configure. The data line label is lit
after selected. You can configure the trigger settings for the four data lines
respectively.
Trigger Output On/Off
Tap the
TrigOut on/off button to enable or disable the respective trigger output
settings for the selected data line.
Trigger
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DP900 User Guide
57
