9.4 Enabling the Arb Output

After editing the Arb parameters, you can go back to the Arb main interface and turn

on waveform output based on settings in

Trigger Source

. The figure below shows the

Arb output interface.

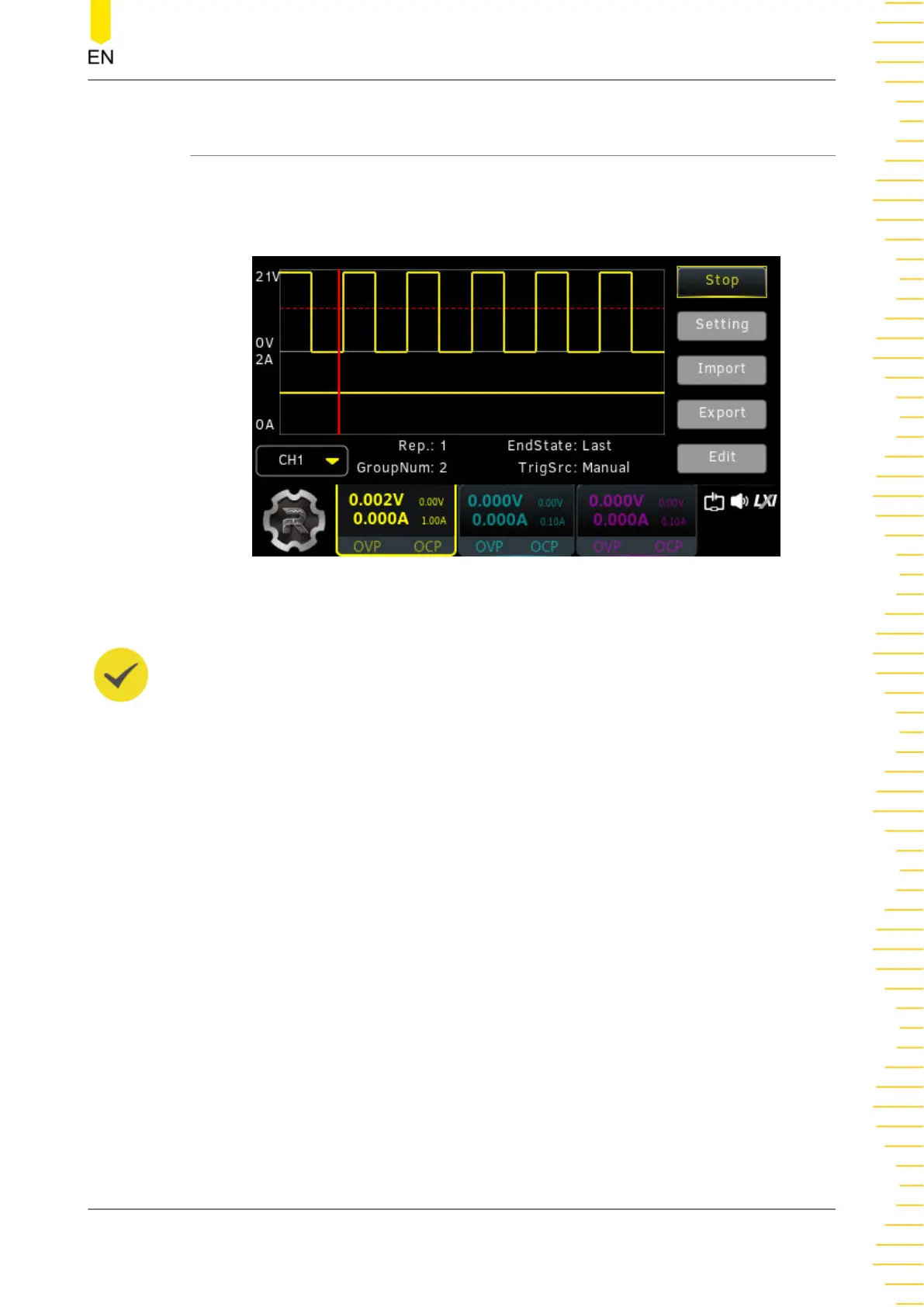

Figure 9.5 Arb Output Interface

TIP

• Enabling the output will change the channel output value. Please make sure that the

change of the output value will not affect the devices connected to the power supply

before turning on the output.

• When the generator is turned on, you need to turn on the corresponding channel to

ensure valid waveform output.

• When the output is initiated, all the Arb settings and parameters cannot be configured.

Arb Function

DP900 User Guide
