Tap the Wave drop-down button to select a waveform template. Available

waveform templates include Sine, Pulse, Ramp, Stair UP, Stair Dn, StairUpDn, Exp

Rise, and Exp Fall.

- Sine

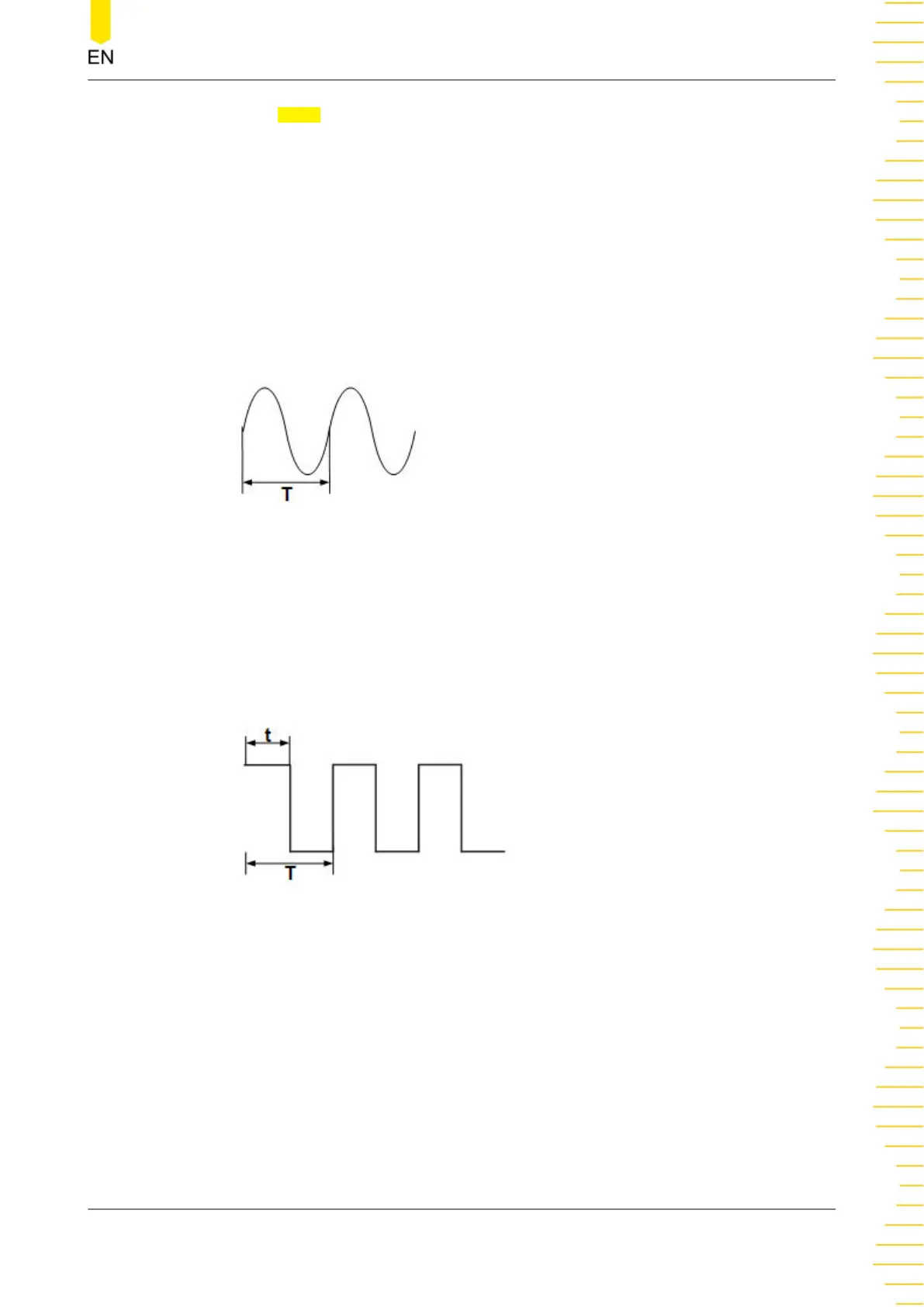

The Sine waveform is as shown in the figure below. Setting the maximum and

minimum value creates the amplitude. Setting the period (T) and time interval

creates the total number of points (P) in a complete period. Thus, a Sine

waveform is created. Setting the inserted groups (G) determines the number of

groups to be inserted in the Arb editor.

- Pulse

The Pulse waveform is as shown in the figure below. Setting the maximum and

minimum value creates the amplitude. Setting the positive pulse width (t)

determines the duration of high levels. The currently set period (T) minus the

positive pulse width (t) is the duration of low levels. Setting the inserted groups

(G) determines the number of groups to be inserted in the Arb editor.

- Ramp

The Ramp waveform is as shown in the figure below. Setting the maximum and

minimum value creates the amplitude. Setting the period (T) and time interval

creates the total number of points (P) in a complete period. Setting the

symmetry (Sym) creates the Ramp waveform. The rising edge of the Ramp

waveform has int (P*Sym)

[1]

points and the falling edge has P-int (P*Sym)

points.
