Voltage Parameters
1. Vmax: the voltage value from the highest point of the waveform to the GND.
2. Vmin: the voltage value from the lowest point of the waveform to the GND.
3. Vpp: the difference between the maximum value and the minimum value of the
waveform.
4. Vtop: the voltage value from the flat top of the waveform to the GND.
5. Vbase: the voltage value from the flat base of the waveform to the GND.
6. Vamp: the difference between the top value and the base value of the
waveform.
7. Vavg: the arithmetic average value of the voltage values of the waveform points.
The operation formula is as follows.
n
x
Average
n
i
i
∑
1=
=
Wherein,
i
x
is the measurement result of the ith point being measured;
n
is
the total number of points being measured.
8. Vrms-N: the root mean square value of the voltage values of the waveform
points. The operation formula is as follows.
n
x
RMS
n
i
i
∑
1=
2
=
Wherein,
i
x
is the measurement result of the ith point being measured;
n
is

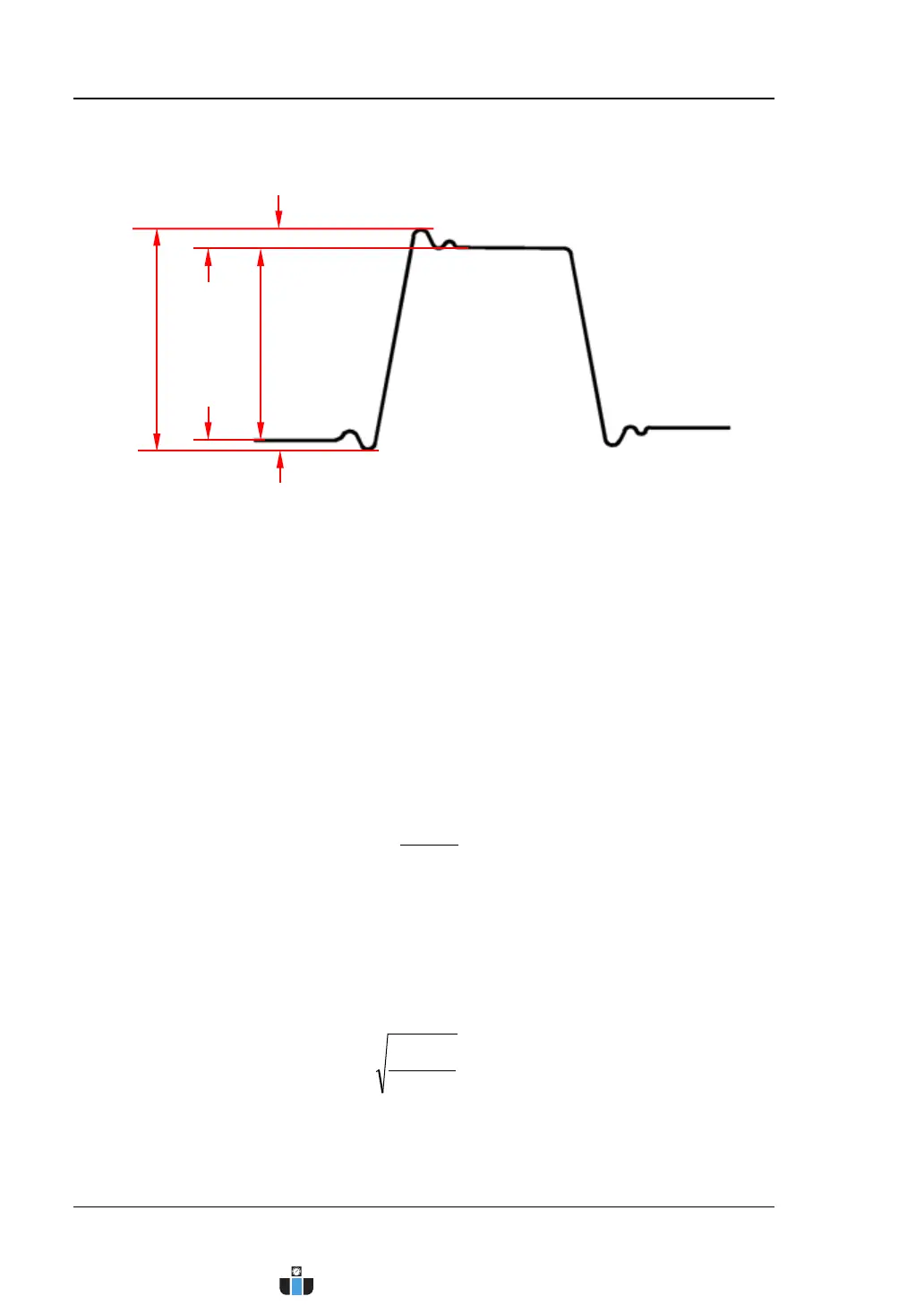

Preshoot
Overshoot
Vamp
Vbase
Vmax
Vmin
Vpp
Vtop
