Current Network Setting
In the network connection setting interface, you can view the current network
setting, including the network status, current IP configuration type, MAC address,
VISA address and network parameters (IP address, subnet mask, default gateway
and DNS server). After configuring and applying new network parameters, the
information in the interface will be updated accordingly.
Network Status
The oscilloscope will give different prompts according to the current network
connection status.
 Net Config Success!
 Acquire IP…
 IP Conflict!
 Unconnected!
 DHCP Fail!
Current IP Configuration Type
Display the current IP configuration type: “DHCP”, “Auto IP” or “Static IP”. “No Net
Config!” is displayed during the configuration process and when configuration error
occurs.

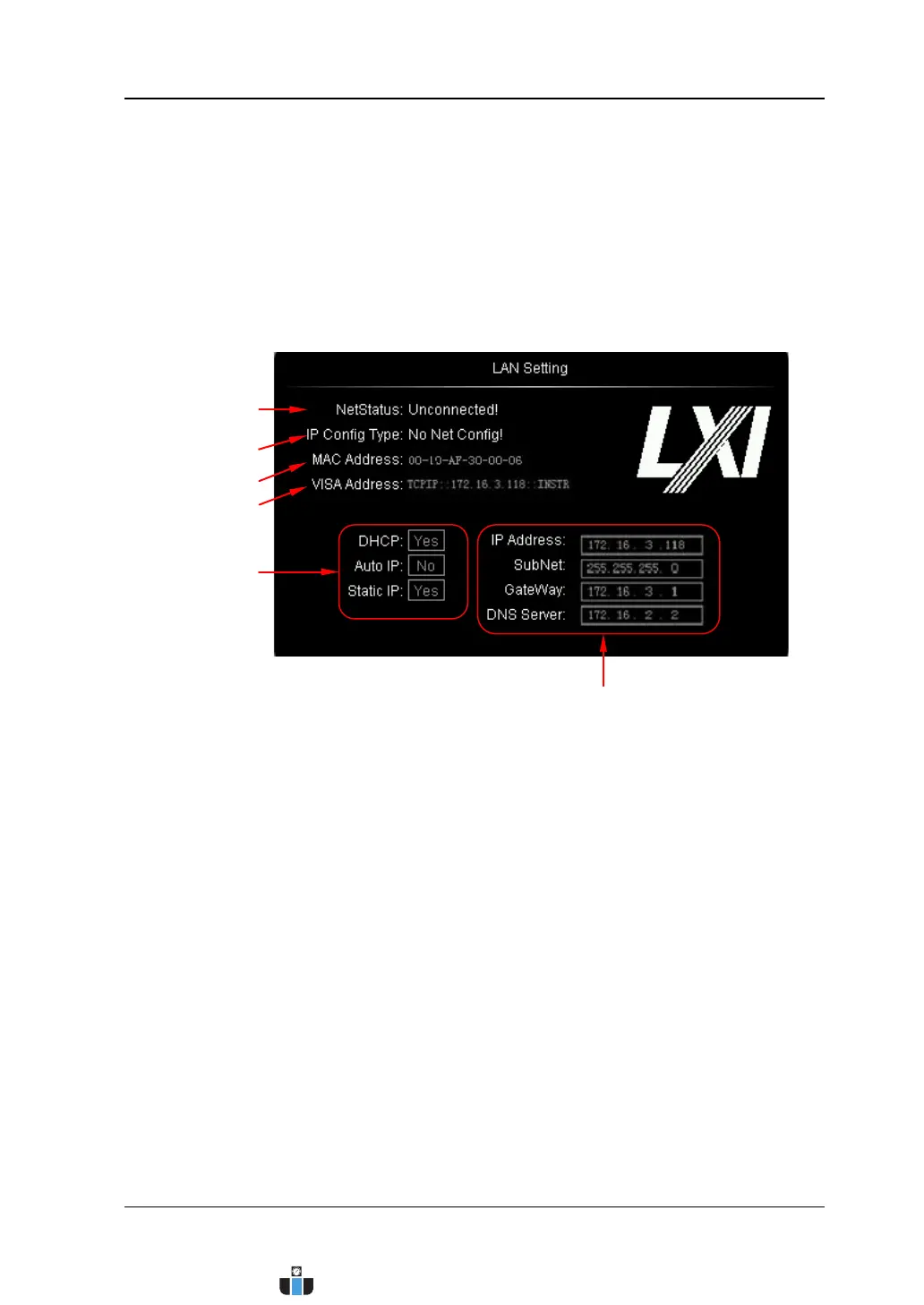

Network Parameters
Network Status
MAC Address
Current IP
Config Type
VISA Address
IP Config
Type Status
