Chapter 1 Quick Start RIGOL
MSO4000/DS4000 User’s Guide 1-11
To Connect the Logic Probe
1. Connect the single-wire end of the logic probe to the digital channel input
terminal [LOGIC D0-D15] at the front panel of MSO4000 series digital
oscilloscope in the correct direction.
2. Connect the other end of the logic probe to the signal under test. RPL2316
provides three signal under test connection methods to meet the requirements of
different application environment. For the details, refer to
RPL2316 Logic Probe
User’s Guide
.
Note: Before connecting the logic probe to the device under test, connect the
logic probe adaptors provided in the accessories to the corresponding channel
groups.

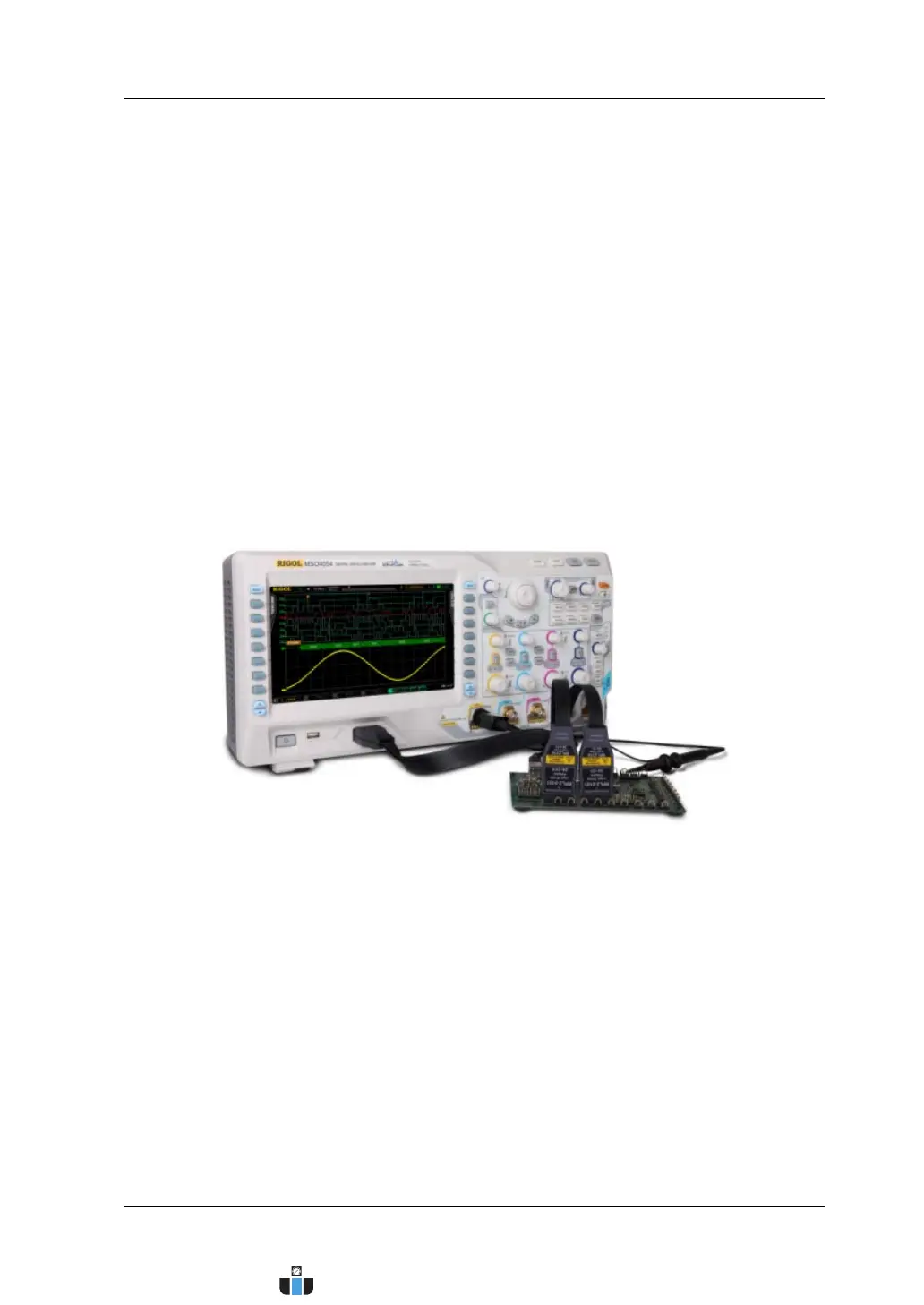

Figure 1-8 To Connect the Logic Probe
