3 User Interface
3.1 General
The front panel of the C520 has a six digit LED display and a 6 key keypad. A cover on the rear allows access

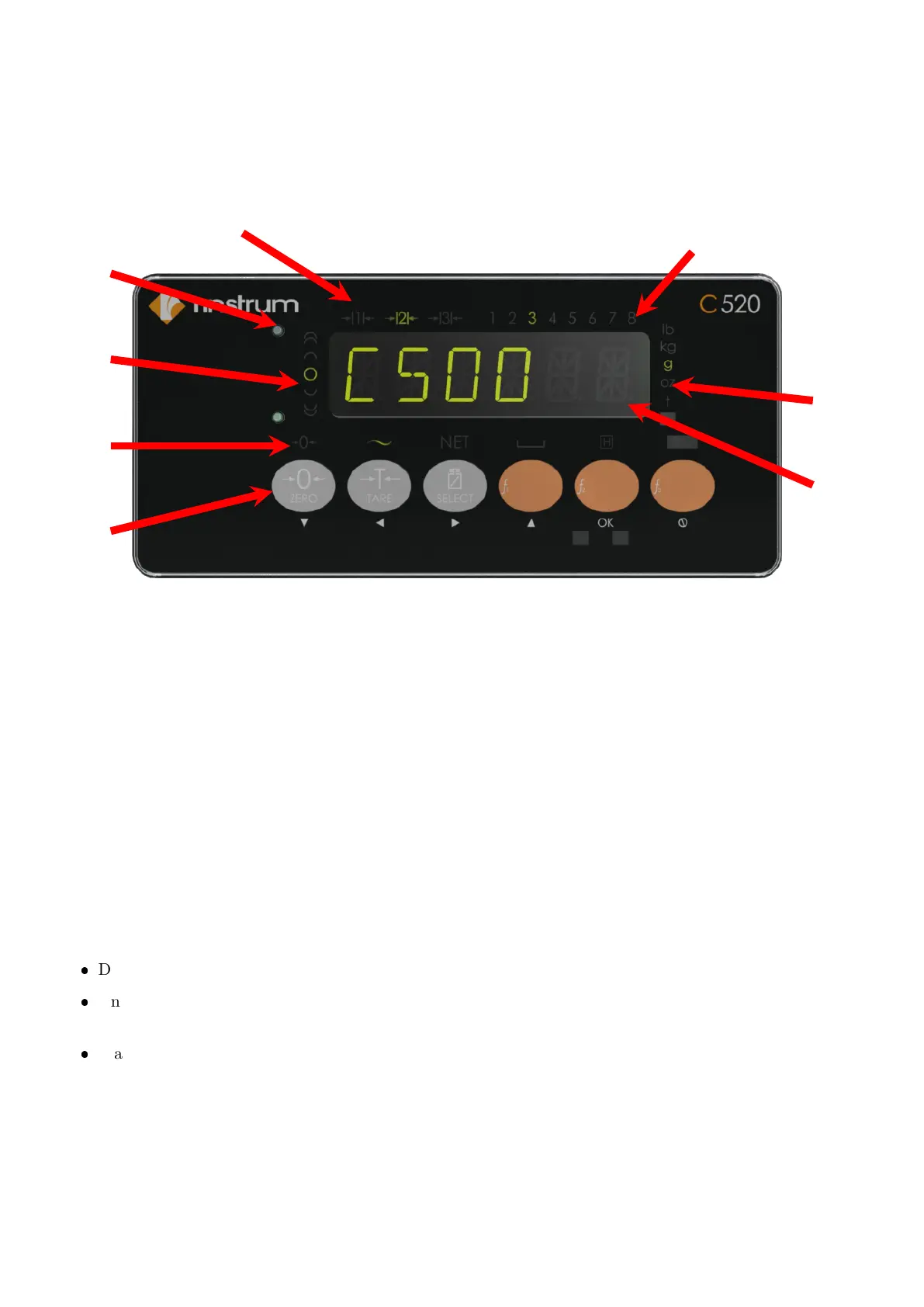

to a hidden key which can be used to enter full digital setup and calibration. The diagram below shows the
main elements of the front panel.
1
2
3
4
5
6
7
8
The C520 user interface includes:
1. 6 digit 14 segment LED display
2. Units indicator
3. Weighing status
4. Setpoint status
5. 6 key keypad
6. Multiple range/interval status
7. Check weigh status
8. Rinlink attachment
9. Full setup key (on the rear of the indicator)
3.2 Display Functions
Display (1): weight readings, errors, information and setup.
Units indicator (2): units for the weight reading (pounds (lb), kilograms (kg), grams (g), ounces (oz),
and tons (t)).
Status indicators (3), (4), (6) and (7): The indicator bank made up of 4 groups of LEDs. The weighing
status (3) shows the status of the displayed reading. The multirange status (6) shows the current
multirange operation. The setpoint status set (4) shows the status of the 8 setpoints (IO).
11 C500-600-2.0.3
