Trigger Functions
Vibration meter mode
The operation principle when using vibration meter mode is illustrated below.
1. Make the required measurement parameter settings.
Note
During trigger operation, the input range setting
cannot be changed.
2. Press the STORE key.
The “Waiting for Time Trigger...” popup indication appears, the
symbol is  ashing, and the LED indicator is  ashing in yellow.
Note
The trigger operation cannot be paused.
3. When the trigger start time is reached, the popup indication “STORE
XXXX” (where XXXX is the store address) appears, storing is carried
out, and the LED indicator  ashes in red.
When storing is complete, the store address is incremented by one.
If the store address was 1000, the trigger operation is terminated
when storing is complete.
4. Subsequently, data are stored at the preset store intervals. The indicator
function and popup indication are the same as in step 3.
5. When the preset store number has been reached, the popup indication
“Time trigger measurement is completed” is shown, and trigger operation
is terminated.
Trigger operation can also be terminated at any previous point by
pressing the START/STOP key.

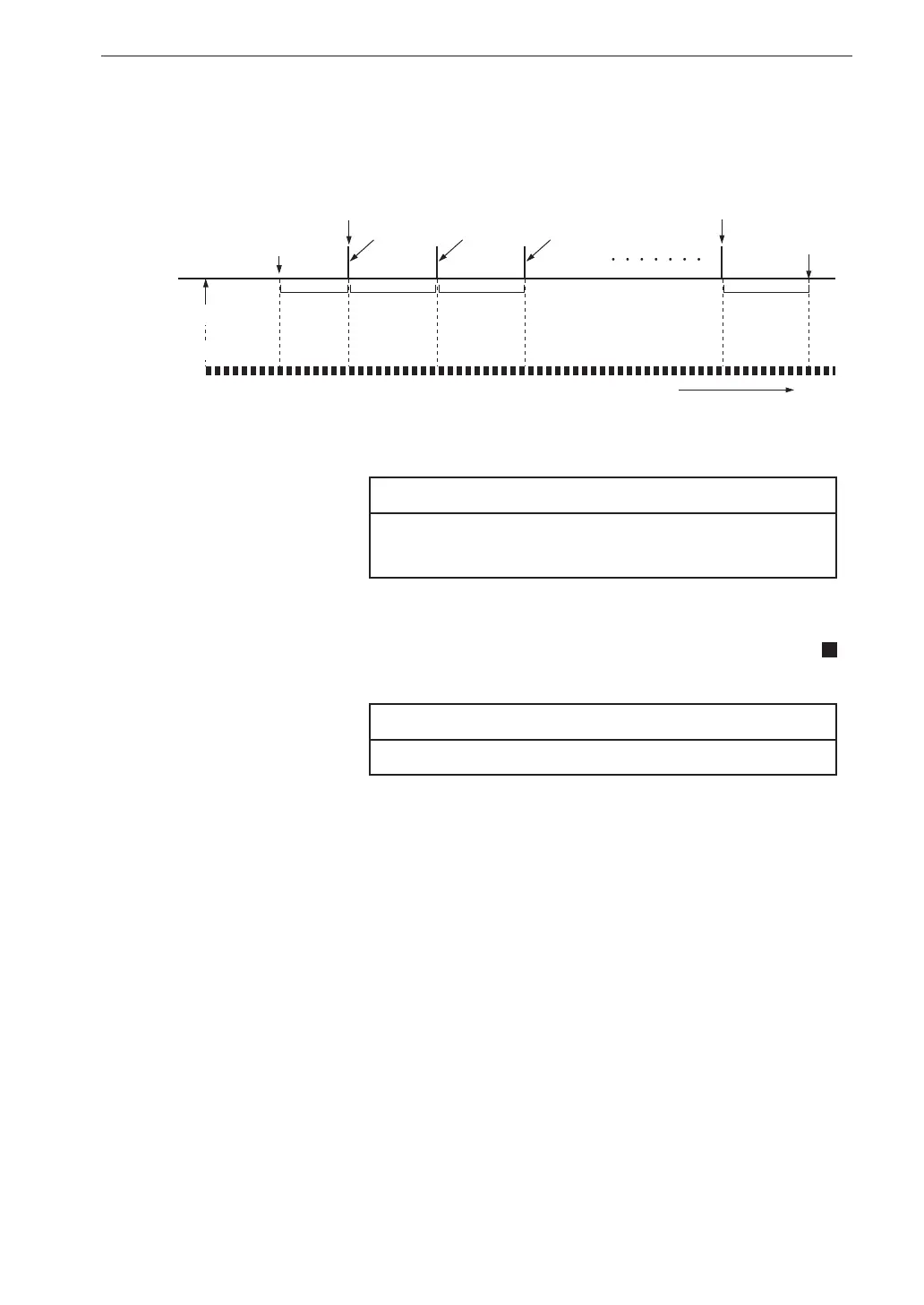

Time
Time/Vibration meter mode
STORE key pressed
Trigger start time
Store
action 1
Store
action 2
Store
action 3
S: Preset store count
Store action S
No store
action
Time set
Time
standby
Store
interval
Store
interval
Store
interval
Screen display
Update
