Measurement in Time Waveform Mode
Making sensor settings
Use the supplied calibration chart of the accelerometer you intend to use, and
make the sensitivity setting by performing the following steps.
1. From the [Analog Input] menu screen, select [Sensor Selection] and
then [PV-57I] or [Other].
2. Set [Sensitivity] to the sensitivity value given on the calibration
chart.
Note
When selecting [PV-57I], a popup window appears,
asking whether you want to change the sensitivity
setting. Also note that the factor cannot be changed.
Changing the input range
Set the input range to an optimum setting (see middle illustration below).
If the
Over
indication appears on the left side of display, the input range
setting is too low. Use the RANGE key to increase the setting (see left
illustration below).
If the graph amplitude is too small, the input range setting is too high. Use
the RANGE key to decrease the setting (see right illustration below).

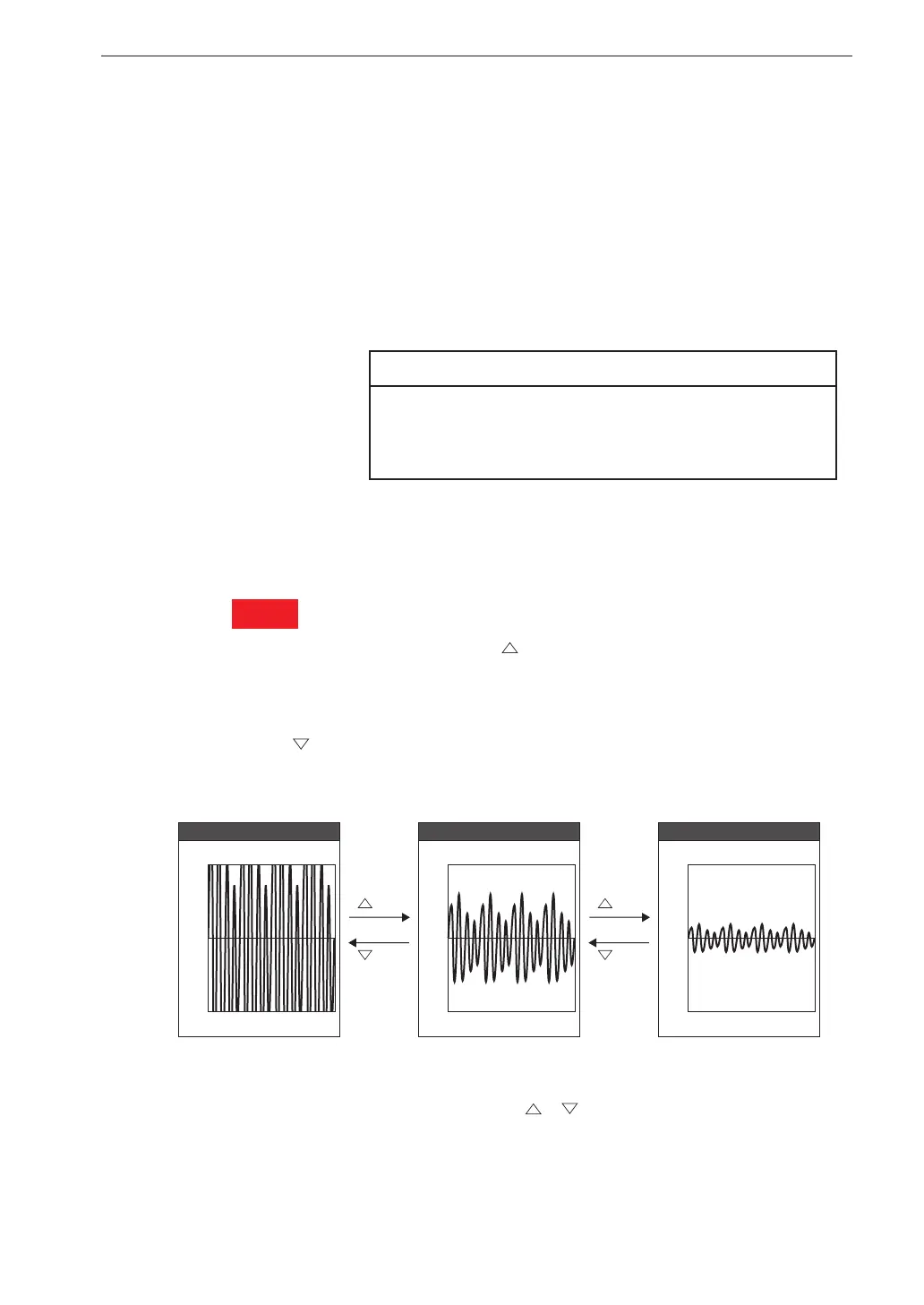

Relation between RANGE
/ keys and display
Range:1
5.00
E+0
(-)
5.00
E+0
Range:3.16
1.58
E+1
(-)
1.58
E+1
Range:10
5.00
E+1
(-)
5.00
E+1
Input range setting too low Optimum Input range setting too high
key
key
key
key
