179
Reference Information

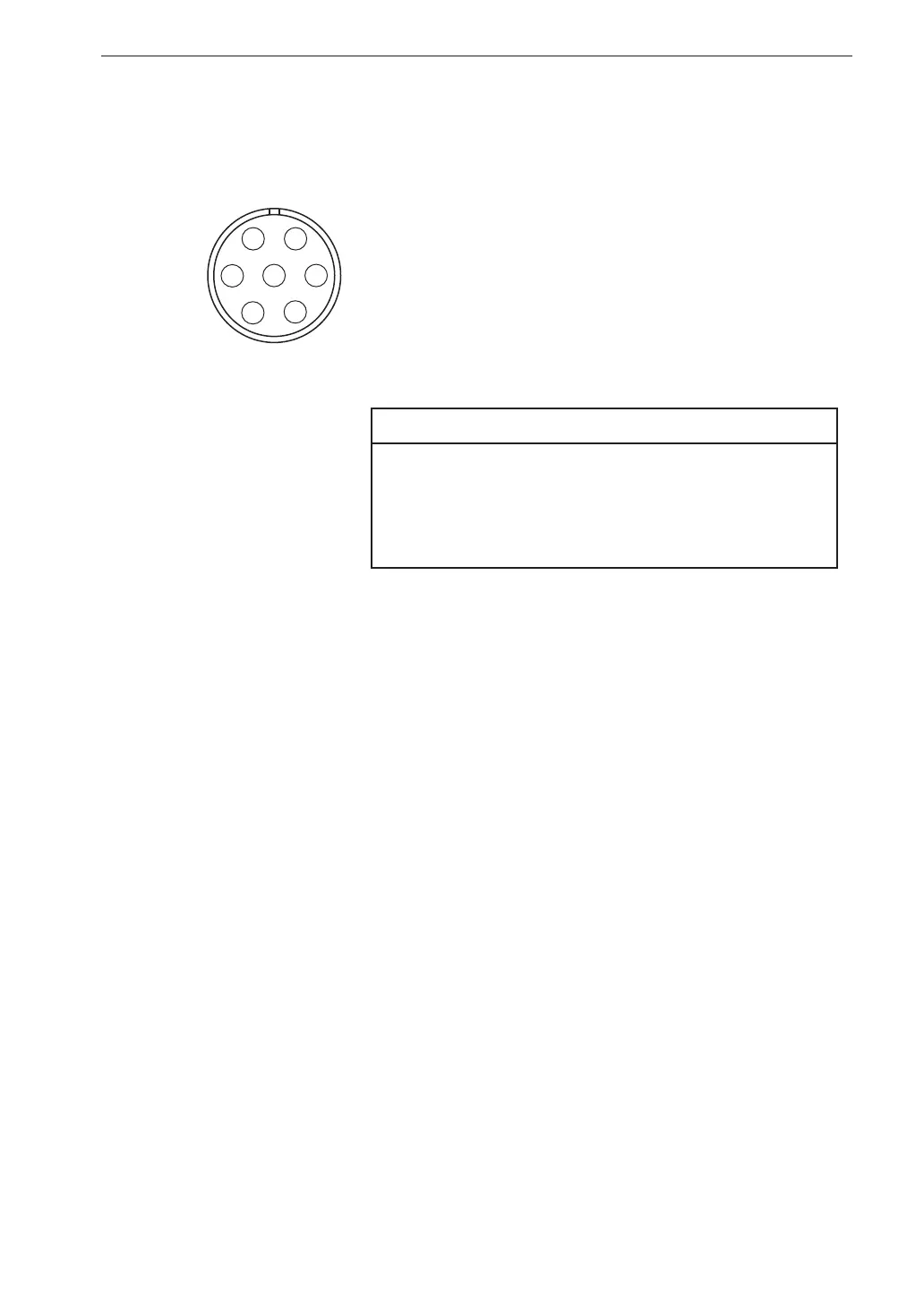

INPUT connector
The input connector is wired as shown below.
A: Unused
B: Ground
C: Z channel signal input
D: Unused
E: X channel signal input
F: Y channel signal input
G: Pickup power supply
Important
Do not connect anything else besides the supplied
3-axis accelerometer PV-83C or supplied extension
cord EC-54S to this connector. Otherwise damage
may occur.
A
B
C
D
E
F
G
Top view
