Preparations
Accelerometer placement and connection

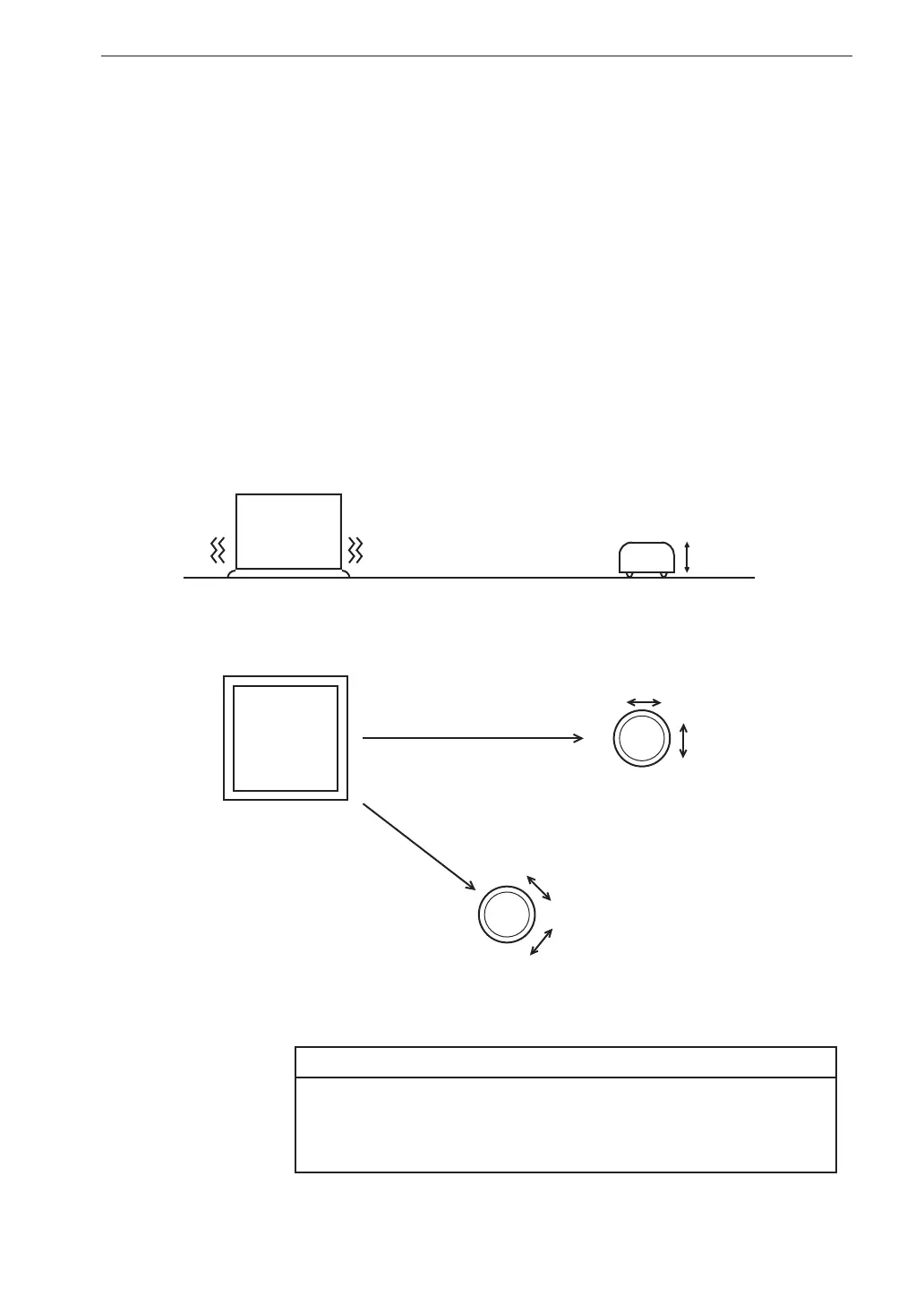

Vibration axis
Environmental vibrations are normally measured in two horizontal planes
(front/back and left/right) and one vertical plane. This means that complex
vibration phenomena are reduced to three axes (X, Y, Z), for easier observation.
The axes are de ned as follows (facing the vibration source).
Horizontal front/back: X
Horizontal left/right: Y
Ver tical: Z
Z axis
Vibration
source
Accelerometer
PV-83C
Accelerometer
PV-83C
Vibration
source
X axis
Y axis
Accelerometer
PV-83C
X axis
Y axis
Note
In the horizontal plane, the X axis and Y axis will be re-
versed when seen centered on the movement direction of the
vibration source.
