B Class Atlantic 85 Manual – First Issue, June 2017
Activity 2 - Personal Competencies
Crew intercoms
Starboard Engine Tachometer
Tally plate - speed &
fuel consumption
Trim/tilt selector switch
Couple batteries switch
Waterscoop
(ballast control)
Helm intercom
SIMS screen
Compass
Port and Starboard engines
electronic start buttons
Port and Starboard engines
electronic stop buttons
Port and
Starboard engines
throttle levers
Helm
Depth gauge
Repeater screen for
GPS, SOG and WPT
information
A
A
Port Engine Tachometer
Searchlight socket
SIMS screen
VHF DSC Radio
Dual band
direction finder
Searchlight socket
PORT
OVERHEAT
FORE DECK AFT DECK
NAVIGATION BLUE FLASH
STBD
OVERHEAT
MAN
OVERBOARD
ALARM
LIGHTS
Alarm silencer button
Port engine overheat
warning light
Starboard engine
overheat warning light
Man overboard
warning light
Fore deck light switch Aft deck light switch
Navigation light switch Blue flash light switch

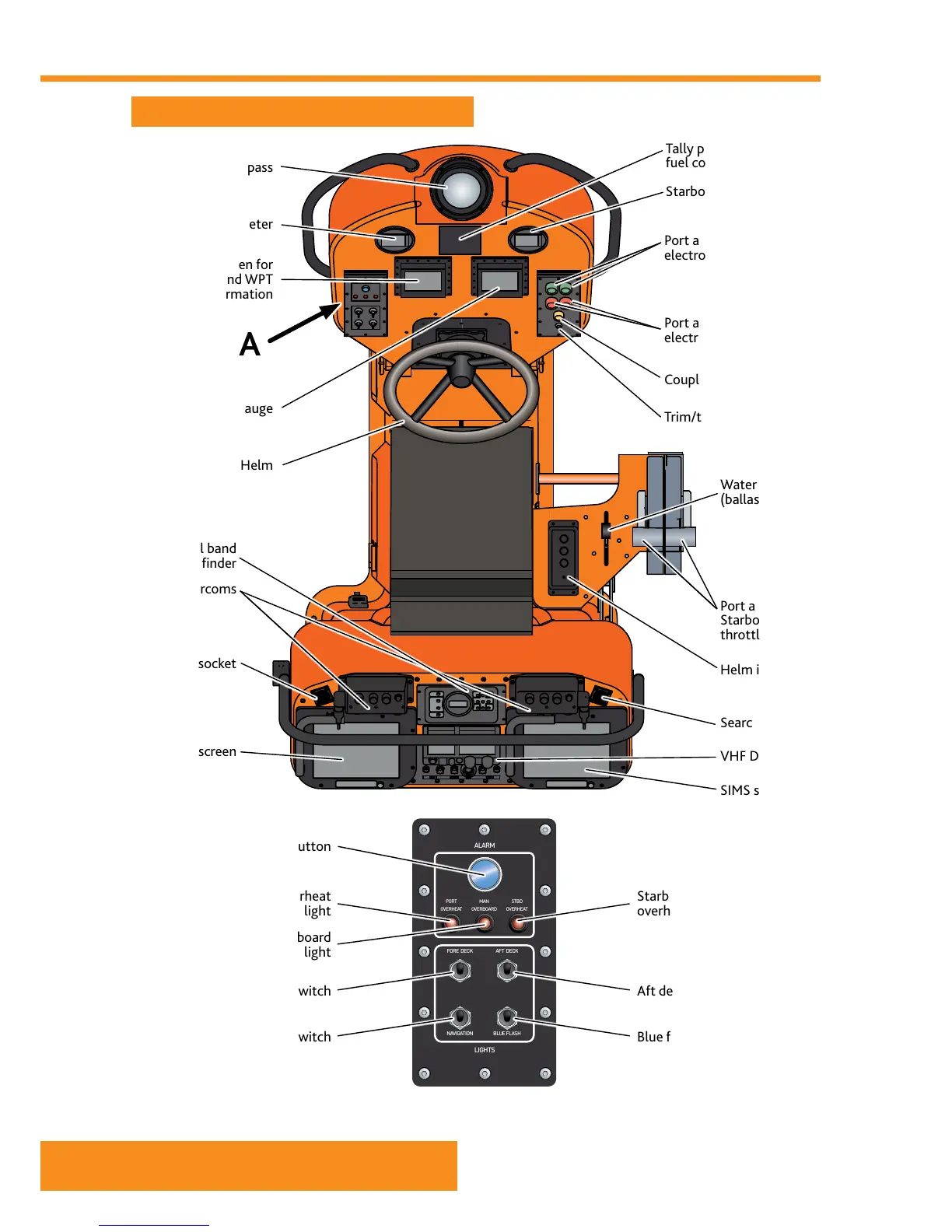

Atlantic 85 layout - consoles
