RNLI Atlantic 85 - Engine Control Unit (ECU) F115 (OE 26)

Activity 9 - Propulsion and Auxiliary Systems 77
B Class Atlantic 85 Manual – First Issue, June 2017
Activity 9 - Propulsion and Auxiliary Systems
Engine control unit (ECU) F115 (OE 26)

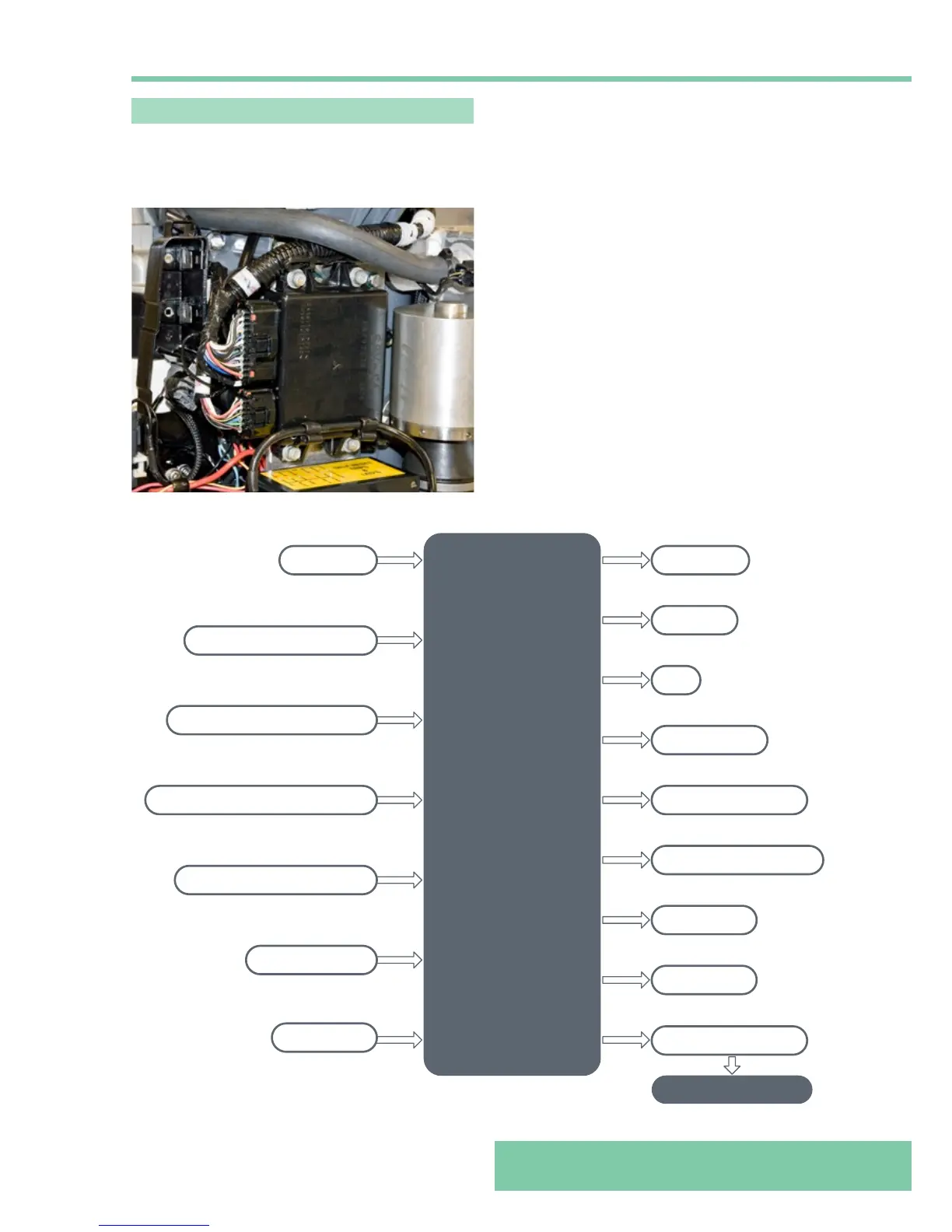

The graphic below shows the sensors, switches and
actuators connected to the ECU in the F115 (OE 26)
outboard engine.
ECU
(Engine control unit)
Pulser coil
Throttle position sensor
Water temperature sensor
Intake air temperature sensor
Intake air pressure sensor
Oil level switch
Stop switch
Fuel pump
Injectors
ISC
Ignition coils
Overheat monitor
Oil pressure monitor
Buzzer
Tachometer
Diagnostic system
Personal computer
