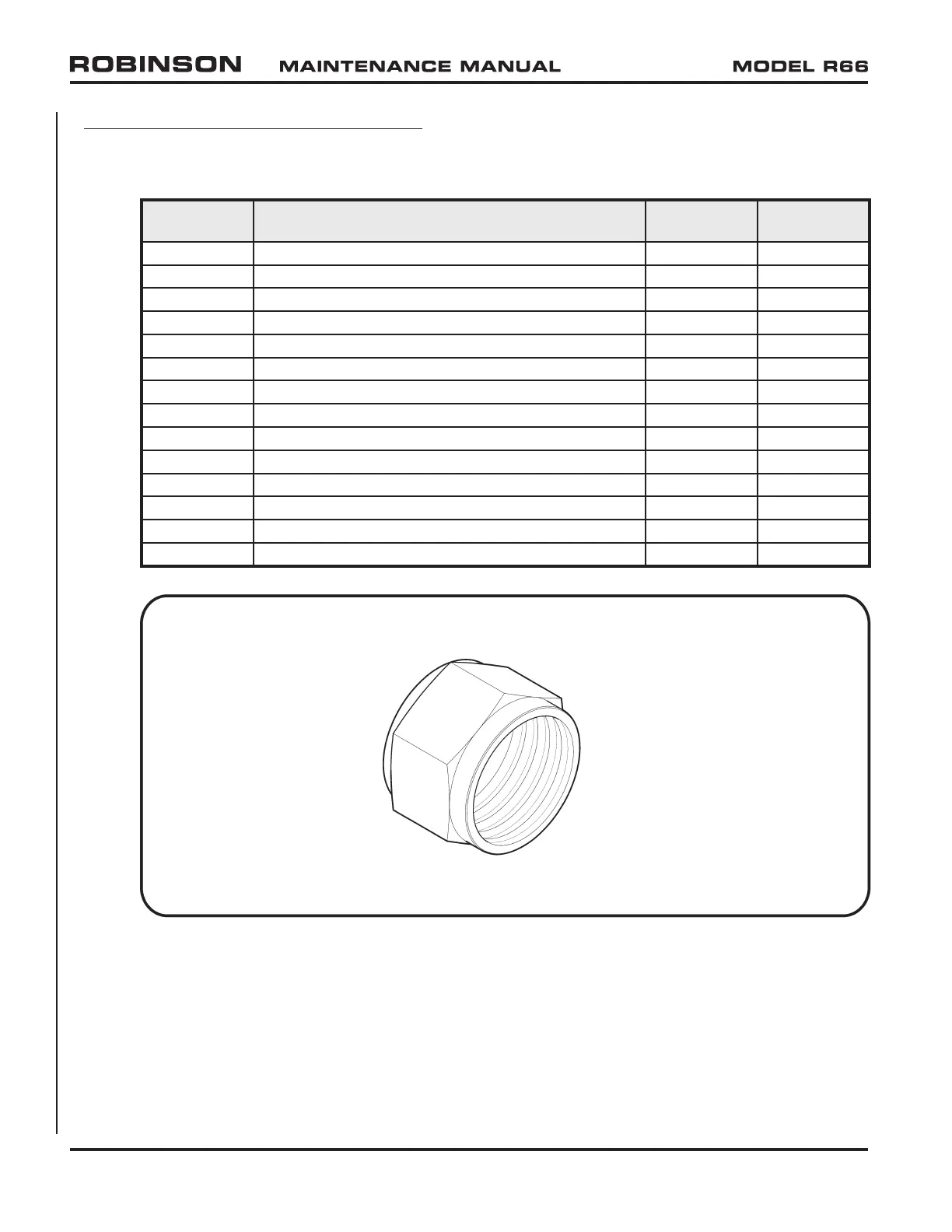

Robinson R66 - A880 Flared Tube Components

Page 20.11C Chapter 20 Standard Practices JUL 2020
20-36 A880 Flared Tube Components
A. Nuts – Flare
Dash
Numbers
Allowable Part Numbers Material REF Tube OD REF
-102 AN818-2D, AN818-2W, AS5175W02 AL 1/8-inch
-103 AN818-3D, AN818-3W, AS5175W03 AL 3/16-inch
-104 AN818-4D, AN818-4W, AS5175W04 AL 1/4-inch
-105 AN818-5D, AN818-5W, AS5175W05 AL 5/16-inch
-106 AN818-6D, AN818-6W, AS5175W06 AL 3/8-inch
-108 AN818-8D, AN818-8W, AS5175W08 AL 1/2-inch
-110 AN818-10D, AN818-10W, AS5175W10 AL 5/8-inch
-202 AN818-2J, AS5175J02 CRES 1/8-inch
-203 AN818-3J, AS5175J03 CRES 3/16-inch
-204 AN818-4J, AS5175J04 CRES 1/4-inch
-205 AN818-5J, AS5175J05 CRES 5/16-inch
-206 AN818-6J, AS5175J06 CRES 3/8-inch
-208 AN818-8J, AS5175J08 CRES 1/2-inch
-210 AN818-10J, AS5175J10 CRES 5/8-inch
