22-30 Flight Control Computer
A. Removal
1. Turn battery & avionics switches off and pull out AUTOPILOT (5 amp) circuit
breaker at panel.
2. Remove G702-7 cover assembly under pilot's seat.
3. Disconnect D323 harness assemblies and D354 servo assembly harnesses from
01311-03-11 flight control computer's J1 PITCH, J2, J3 ROLL, and J4 receptacles.
4. Disconnect pitot and static tubes from computer. Plug elbows and tubes.
5. Support computer and remove screws securing computer to D358-1 support
assemblies. Carefully remove computer from under pilot's seat.
APR 2017 Chapter 22 Autopilot Page 22.5

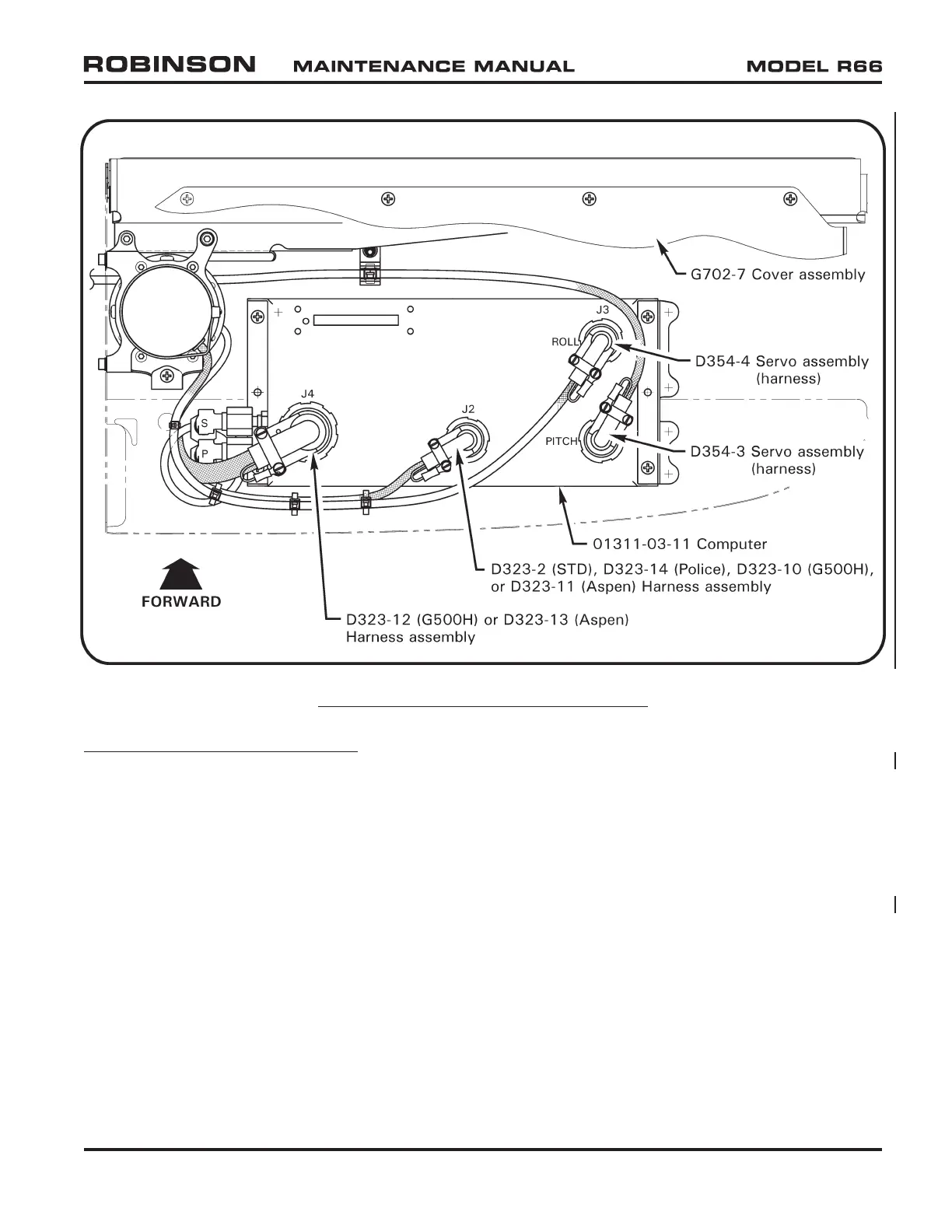

FIGURE 22-2 FLIGHT CONTROL COMPUTER
To Next Page
