Robinson R66 - Wiring Diagrams

To Next Page

To Previous Page

92-290 Wiring Diagrams

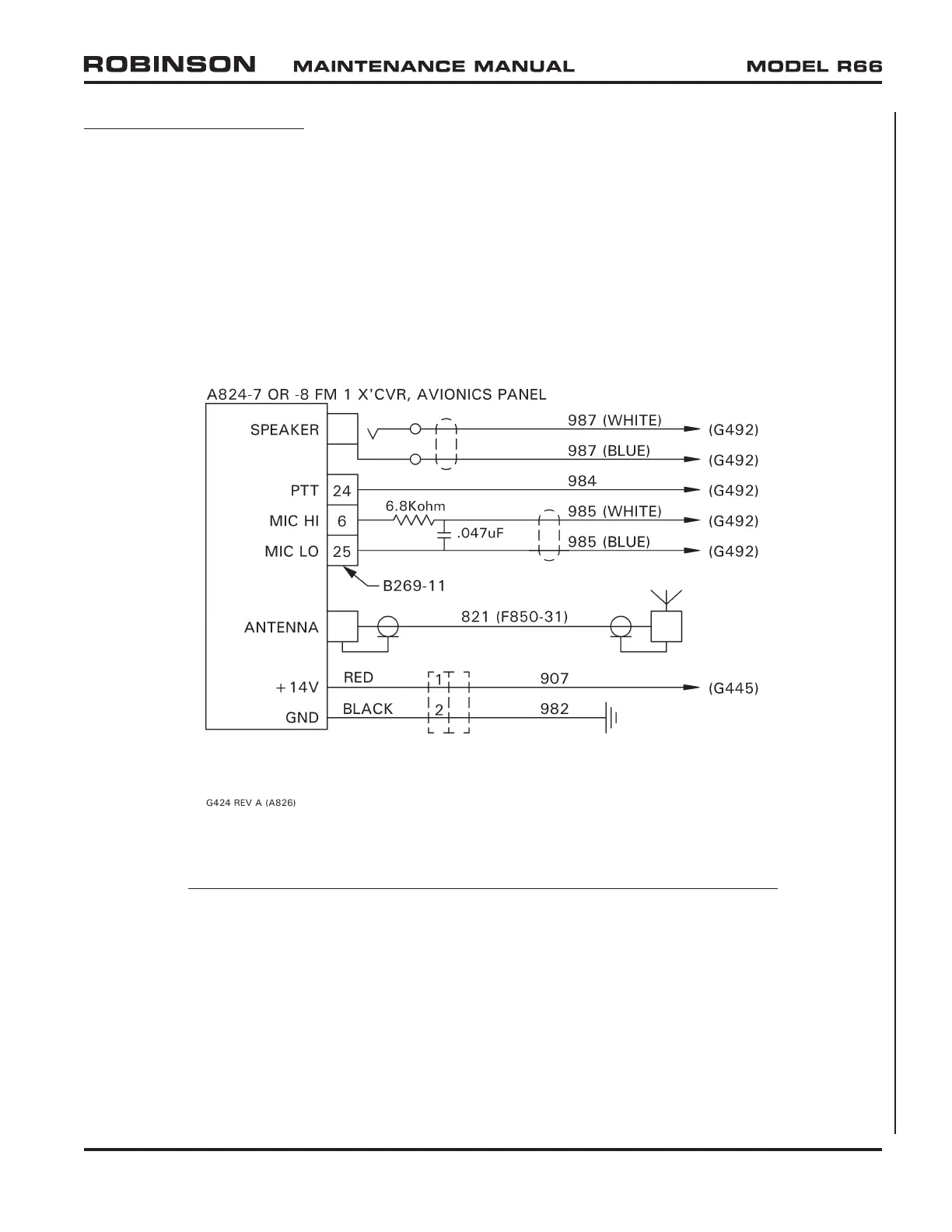

FIGURE 92-3 A826-18 TRANSCEIVER INSTALLATION (FM1) WIRING DIAGRAM

JUL 2020 Chapter 92 ENG Version Page 92.51
