92-290 Wiring Diagrams (continued)

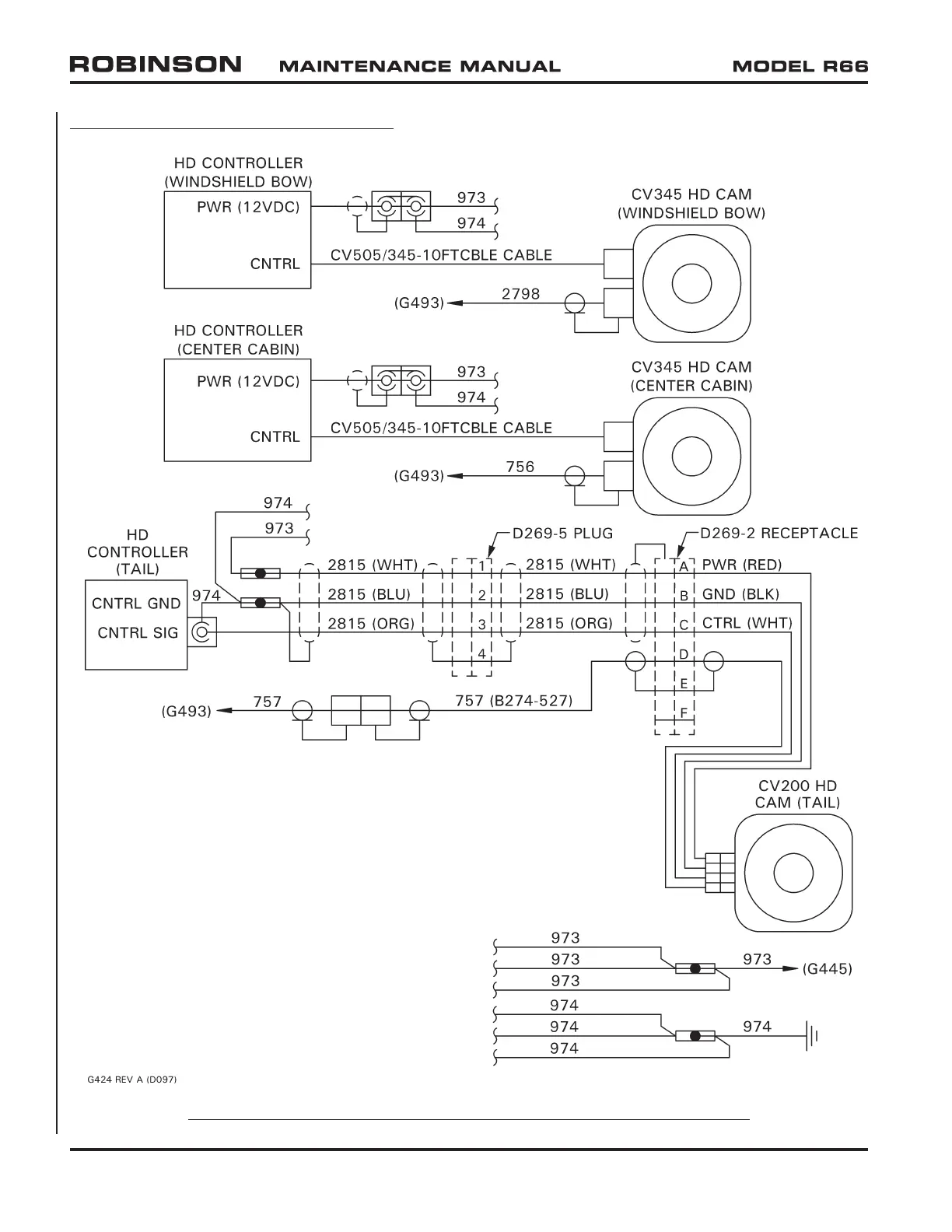

FIGURE 92-4 D097 HD MICRO CAMERA INSTALLATION WIRING DIAGRAM

Page 92.52 Chapter 92 ENG Version JUL 2020
