FIGURE 5-2 ROD END CENTERING

Position rod ends for maximum rotation

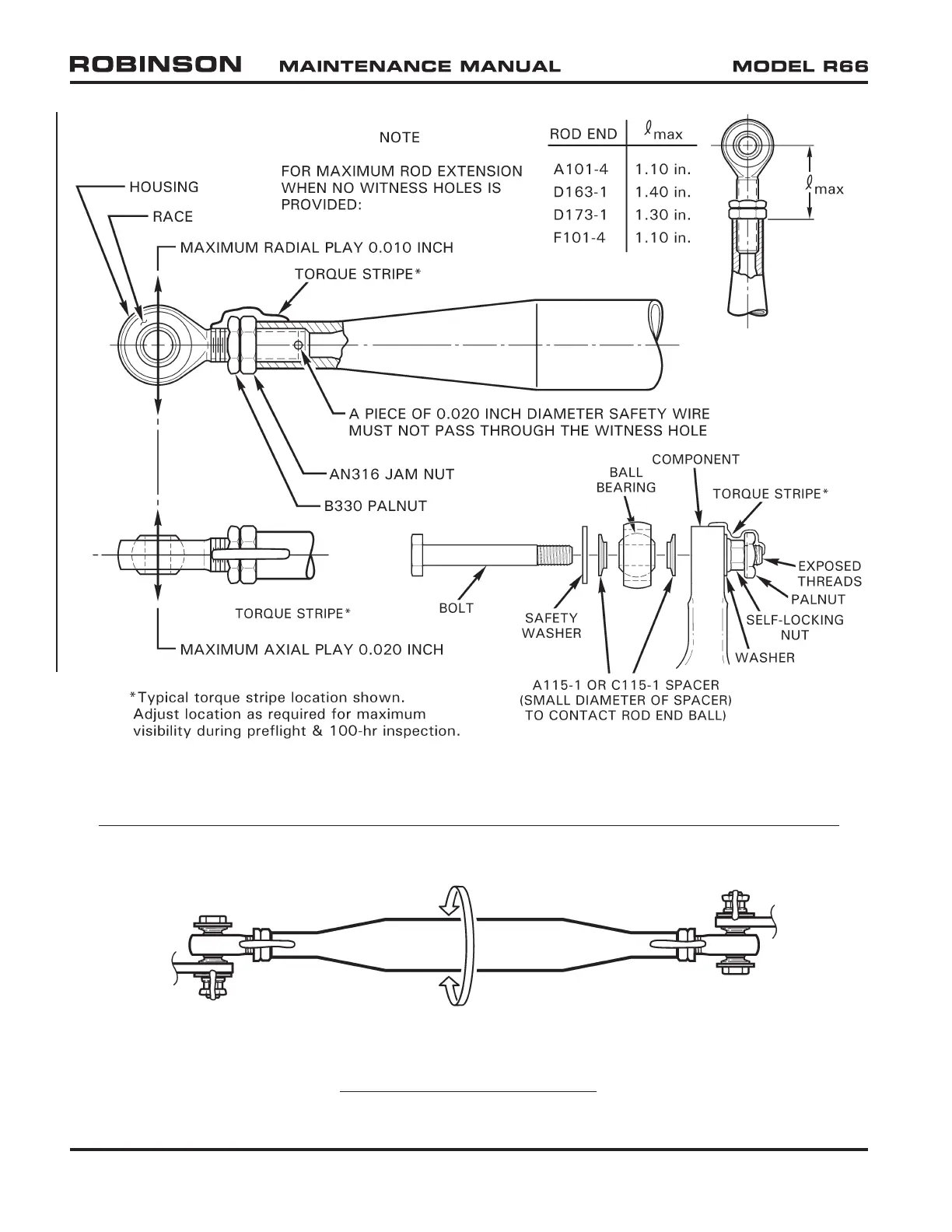

FIGURE 5-1 ROD END AND SPHERICAL BEARING PLAY LIMITS AND TORQUE STRIPE APPLICATION

Page 5.2 Chapter 5 Inspections JUL 2020
