Robinson R66 - Page 767

To Next Page

To Previous Page

92-290 Wiring Diagrams (continued)

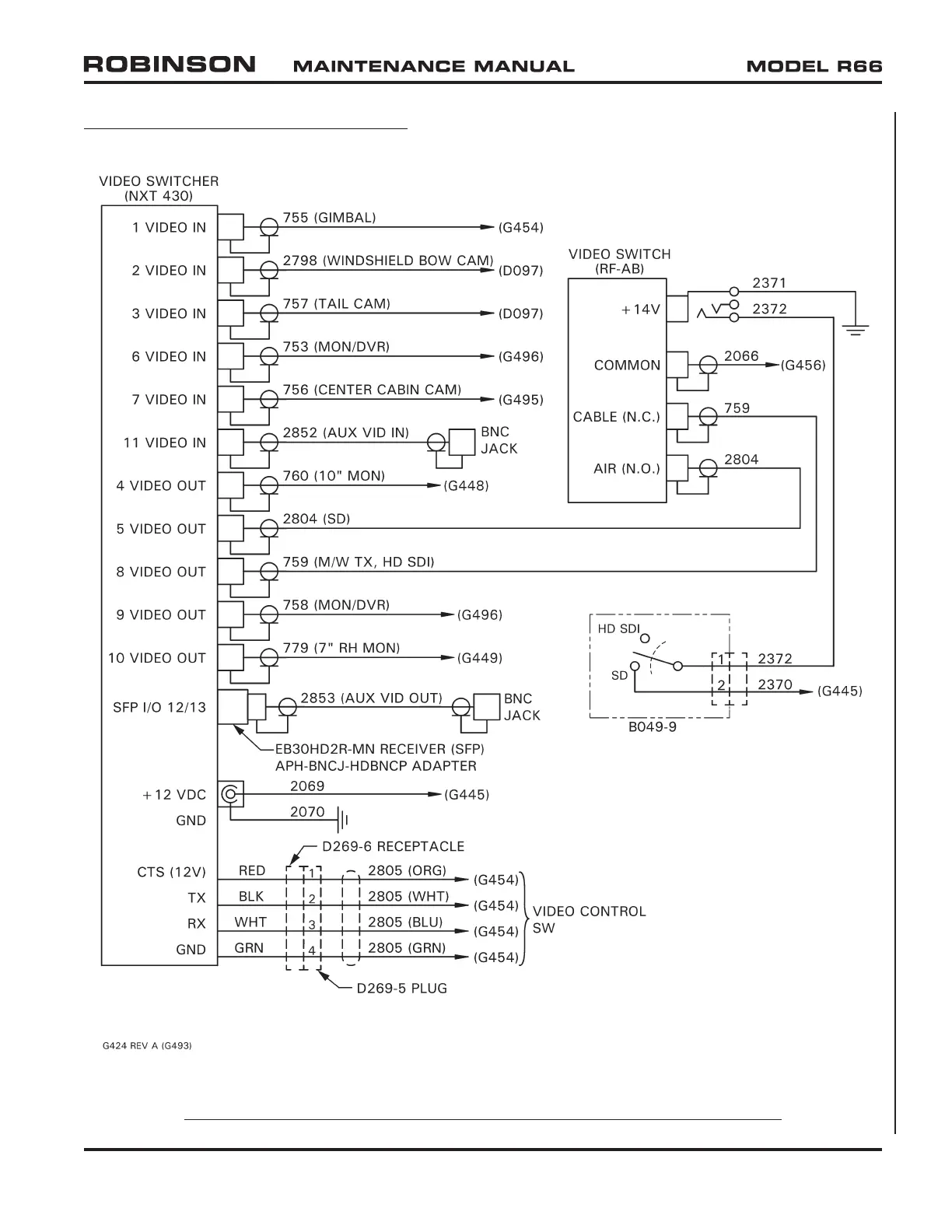

FIGURE 92-15 G493-1 VIDEO COMPONENTS INSTALLATION WIRING DIAGRAM

JUL 2020 Chapter 92 ENG Version Page 92.67
