7.6. ROTARY RING BELT ADJUSTMENT

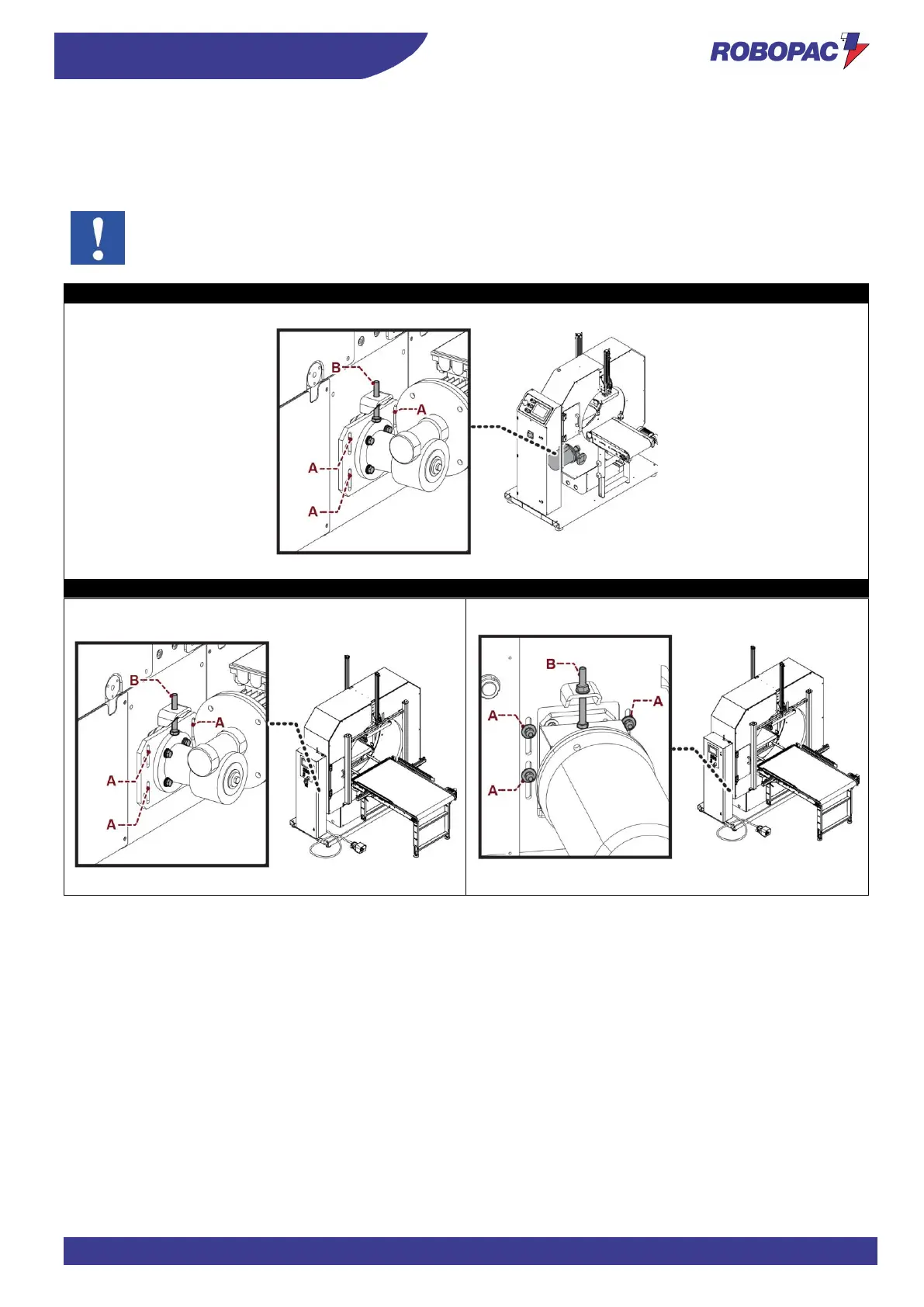

1. Loosen the fastening screws (A) of the reduction unit.
2. Act on screw (B) to achieve correct belt tension.
3. Tighten the reduction unit fastening screws (A) when adjustment is completed.
Important
To avoid transmission overload, do not excessively tighten the belt.
Compacta S4-S6
Compacta S9 spool 125 / 250
Compacta S12
