ENG
ANNEXES
114

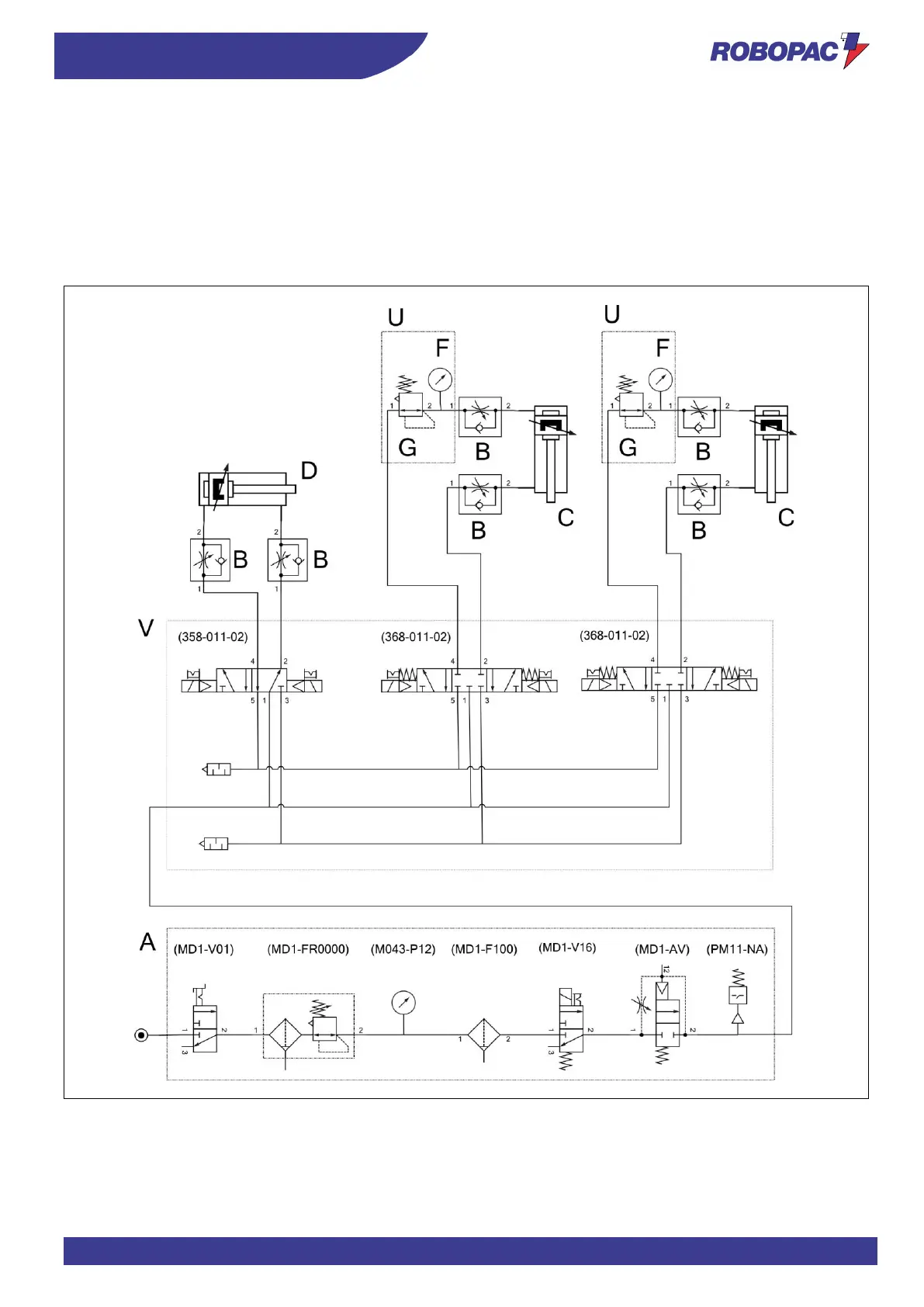

10.2. STANDARD MACHINE PNEUMATIC DIAGRAM
Legend:
A) Air treatment unit.
B) Pressure regulator.
C) Input/output pressure cylinder.
D) Clamp cylinder.
F) Pressure gauge.
G) Flow regulator.
