4.8. ELECTRICAL CONNECTION
Standard machines work with the following mains voltage values:
- Standard machines work with the following mains voltage values:
Proceed as follows for the electrical connection.
1. Check that the line voltage (V) and frequency (Hz) correspond to those of the machine (see identification plate
and wiring diagram).
2. Turn main switch to pos. 0 - (OFF).

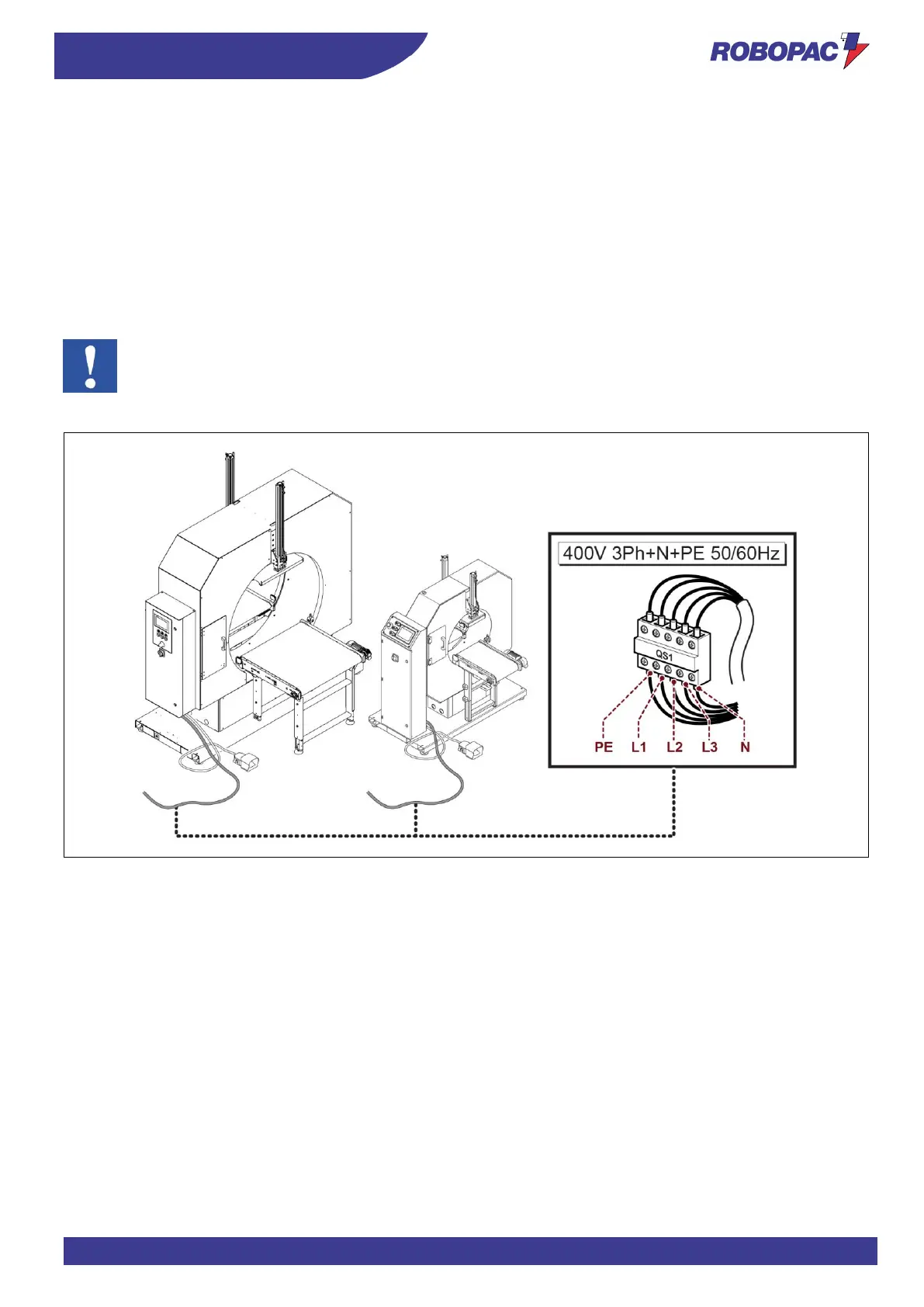

3. Connect the power cable as shown in the figure.
4. Power the machine using the main switch.
5. Press the START pedal.
Important
The earth wire (yellow-green) must be connected to its earth terminal PE.
Refer to the wiring diagram in the machine power supply page to check the correct dimensions of the power
cable and of the protection device.
