3.1.1. MACHINE MODELS DESCRIPTION
During the operating stages just one operator is necessary to perform the product feeding, cycle start and wrapped
product unloading operations.
According to the different operating requirements, this machine can be supplied in different models and configurations.
Machine
Spool
Compacta S4
125
Compacta S6
125
Compacta S9
125
Compacta S9
250
Compacta S12
125 / 250

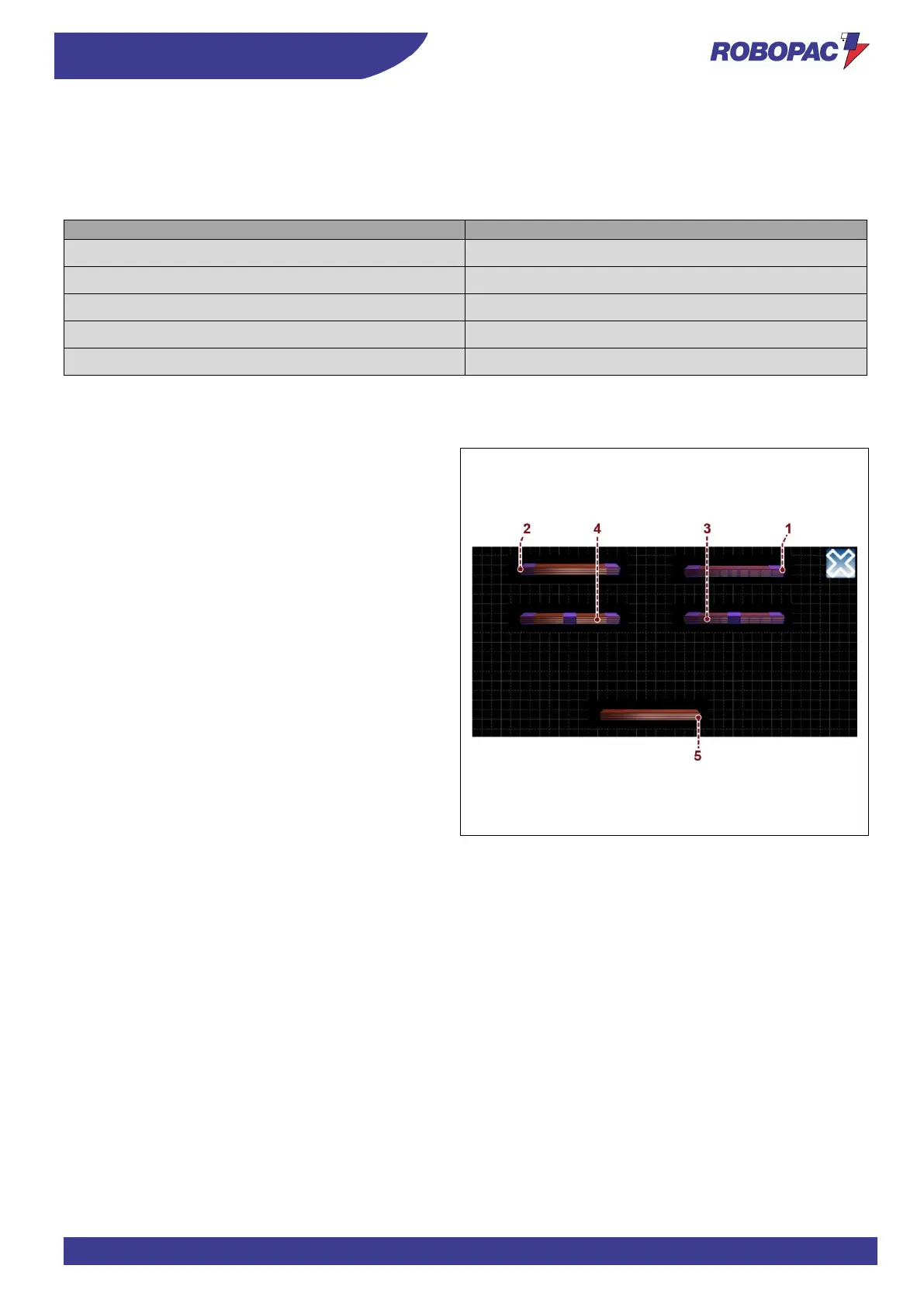

3.2. DESCRIPTION OF THE OPERATION CYCLE
Performable wrapping cycles
Product wrapping can be:
1. “Total” wrapping
The product is completely spiral wrapped with
additional wraps on head and tail.
2. “Head - tail” wrapping:
The product is only wrapped at the head and tail.
3. “Total” and “central bands” wrapping
The product is completely wrapped in a spiral, with
additional wraps on head and tail, and with a series
of reinforcing wrappings spaced using a settable
time.
4. “Head - tail” and “central bands” wrapping
The product head and tail are wrapped with a series
of reinforcing wrappings spaced using a settable
time.
5. By-pass cycle
The product passes through the machine without
being wrapped.
