3.5. DESCRIPTION OF PNEUMATIC DEVICES

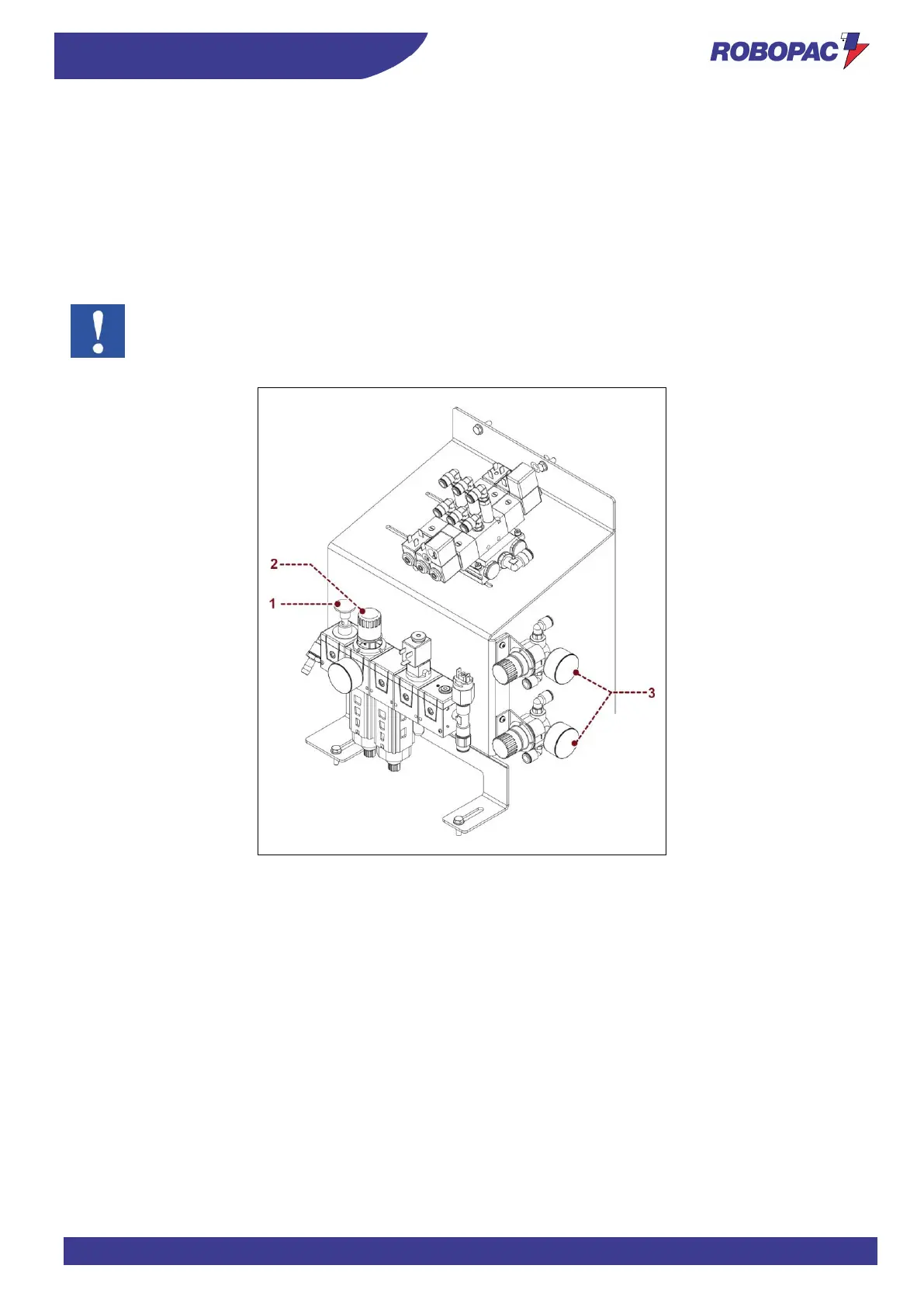

The figure shows the position of the devices on the machine.
1. Tap
To eliminate the pneumatic pressure inside the machine.
2. Pressure regulator with filter and pressure gauge
To adjust the general pressure of the pneumatic system.
Turn the knob to change the pressure values indicated on the pressure gauge.
3. Pressure regulator with pressure gauge
To adjust the pressure of the infeed/outfeed pressers.
Important
For further details see the pneumatic diagram.
