INFORMATION ON HANDLING AND INSTALLATION
4.5.2. PRESSER UNIT INSTALLATION
(Compacta S9 - S12 only)
The machine arrives with the pressers to be positioned.
Proceed as follows to install the pressers correctly.
1.

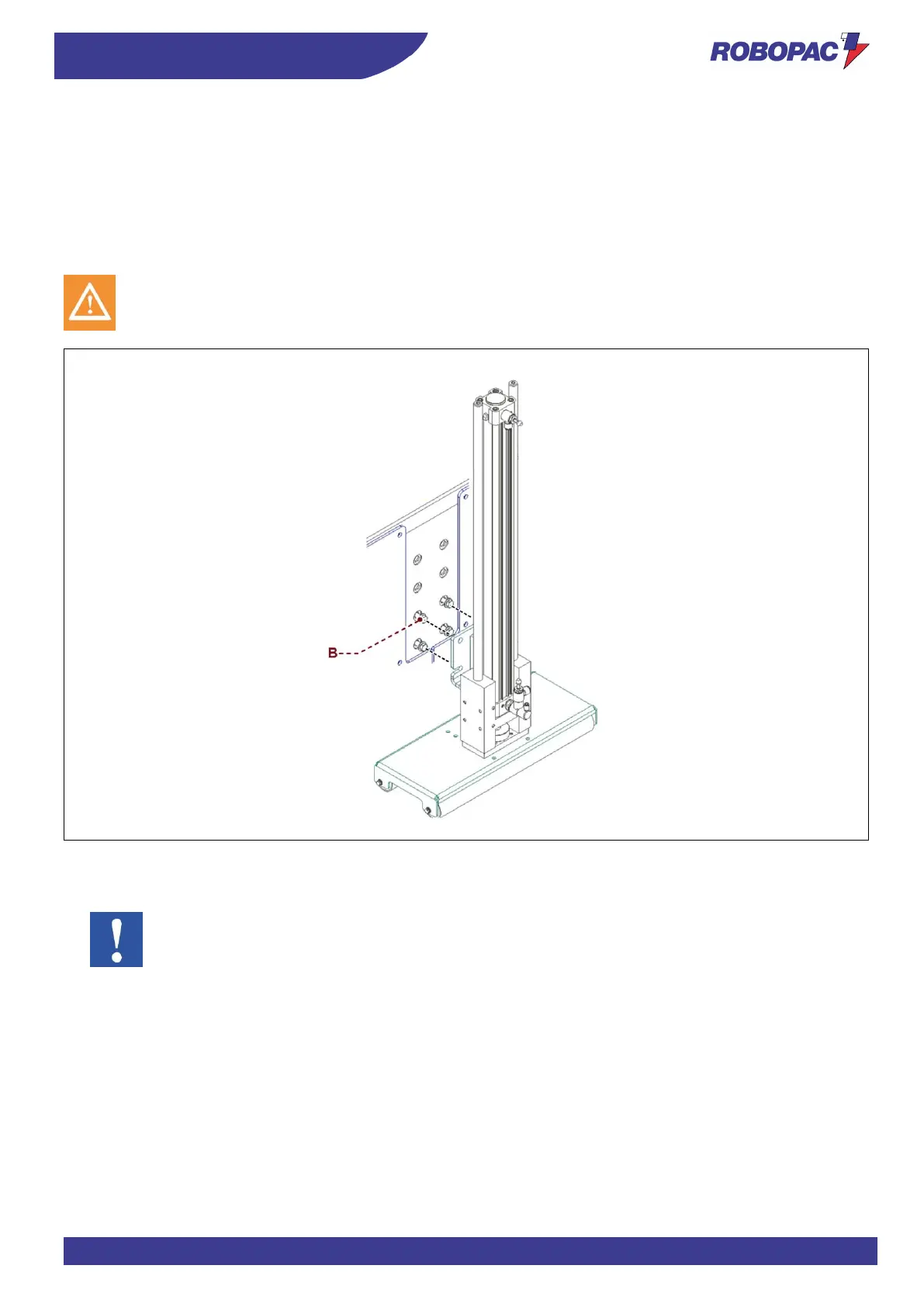

Fix the presser to the structure in correspondence of the 4 screws (B).
2.
Connect the fork of the presser to the crosspiece (for S12 only).
3.
Connect the pneumatic tubes paying attention to the reference numbers.
Caution - warning
During the operation pay attention not to damage the presser unit.
4.6. RECOMMENDATIONS FOR CONNECTIONS
Important
The connections must be made in accordance with the specifications supplied by the Manufacturer in
the enclosed diagrams. The person authorised to carry out said operation must have the skills and
experience acquired and acknowledged in the specific sector, must perform the connection in
accordance with the best practice and take into account all the regulatory and legislative requirements.
Once the connection has been completed, before commissioning the machinery, it is necessary to
perform an overall check to verify if said requirements have been complied with.
