3.3. SAFETY DEVICE DESCRIPTION

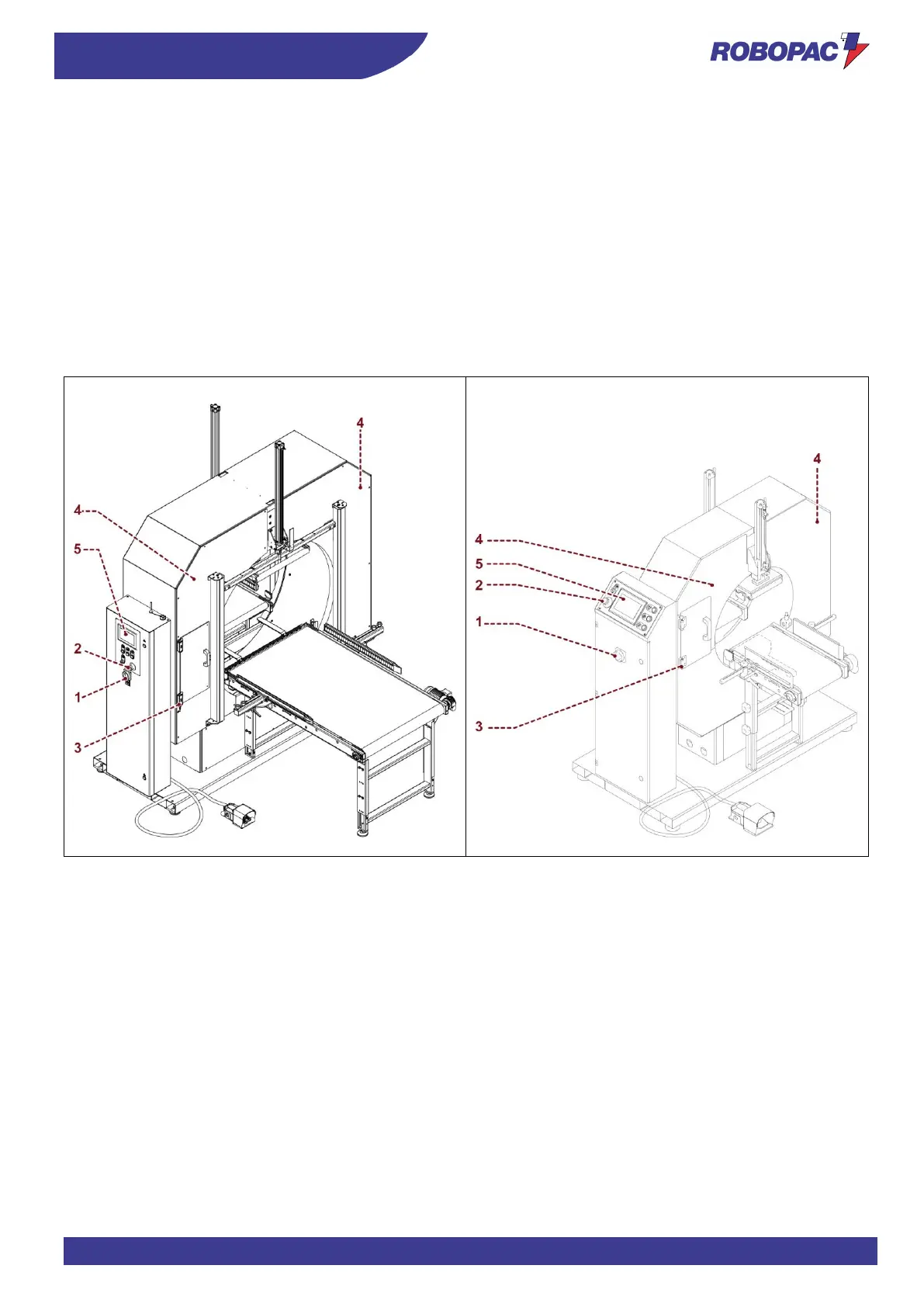

The figure shows the position of the devices on the machine.
1. Main switch
It cuts off the power supply to the machine and can be padlocked to prevent use by unauthorised people.
2. Emergency buttons
When pressed they immediately stop the machine in emergency conditions.
To reset, rotate the button in the direction indicated by the arrow.
3. Microswitch on the door
It disables any function of the machine when the door is opened.
4. Fixed guards
They avoid access to the inner parts of the machine.
5. Alarm warnings
The operator panel display indicates any anomalies that may occur on the machine.
