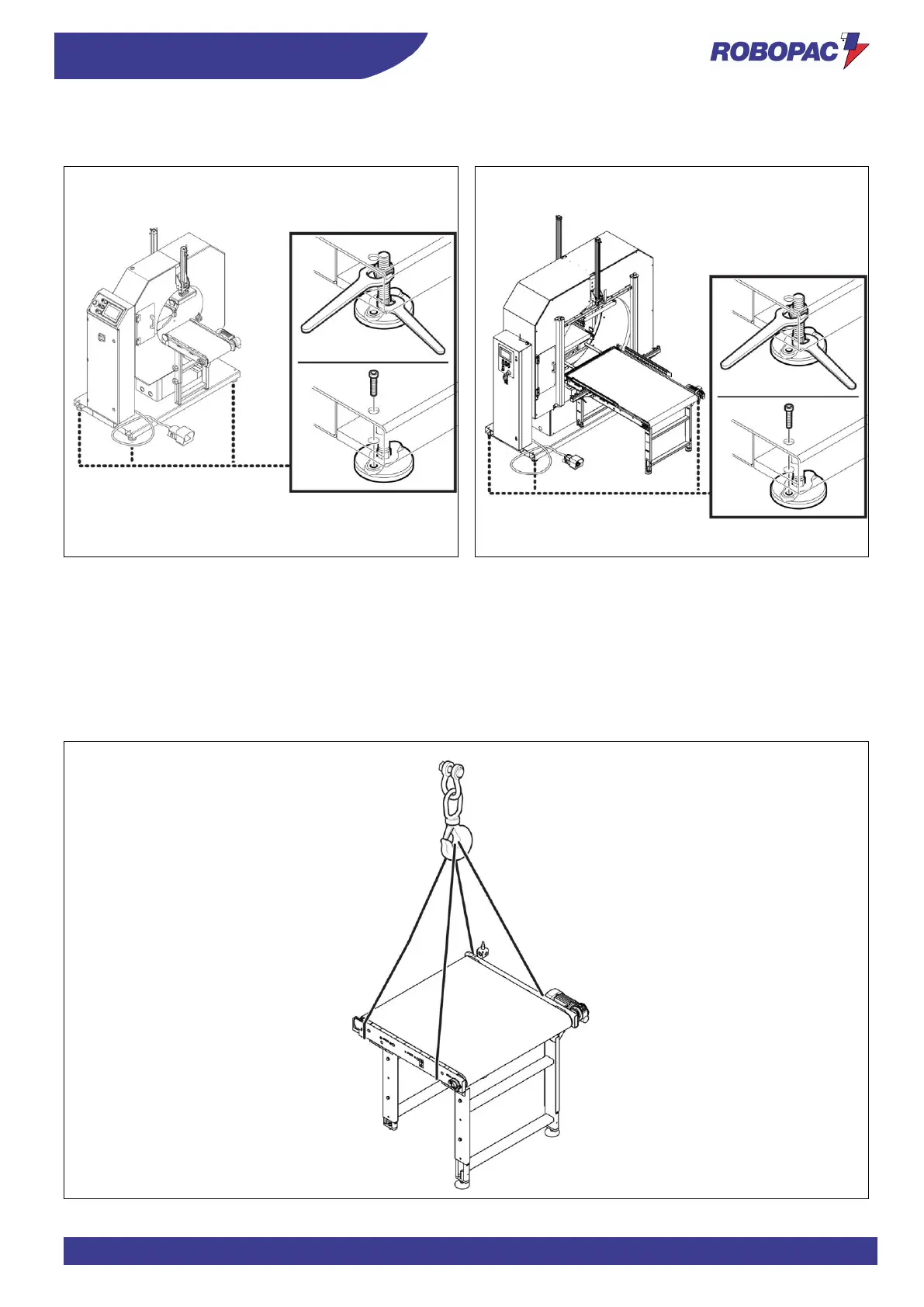

6. Use the support feet to level the machine.
7. The machine can be fastened to the floor, if required, by drilling holes in the walls prepared on the support feet.
4.5.1. CONVEYORS ASSEMBLY
(length 1500 mm / 850 mm)
1.
Unpack the conveyors.
2.
Remove the screws that fasten the conveyor.
3.
Connect the conveyor and support it to avoid damaging the conveyor belt.
4.
Lift the conveyor and screw the adjustable feet to the frame.
5.
Fasten the conveyor to the machine base.
