INFORMATION ON HANDLING AND INSTALLATION
ENG

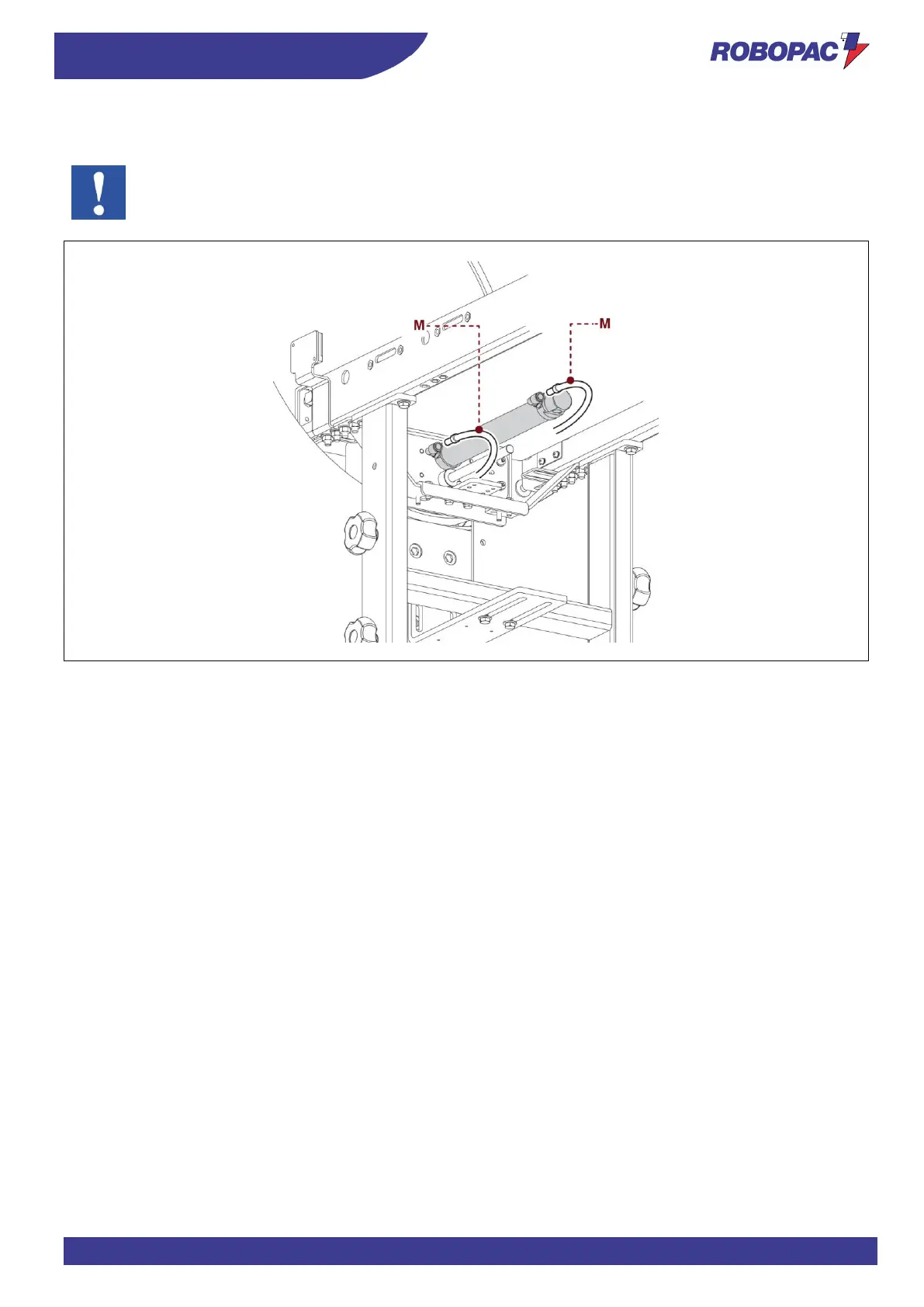

6. Connect the pneumatic tubes (M) to the cylinder of the clamp unit after conveyor assembly (see following
pages).
Important
Remember that the tube that controls the exit of the clamp is marked with a “6” while the one that controls
its return is marked with a “5”.
