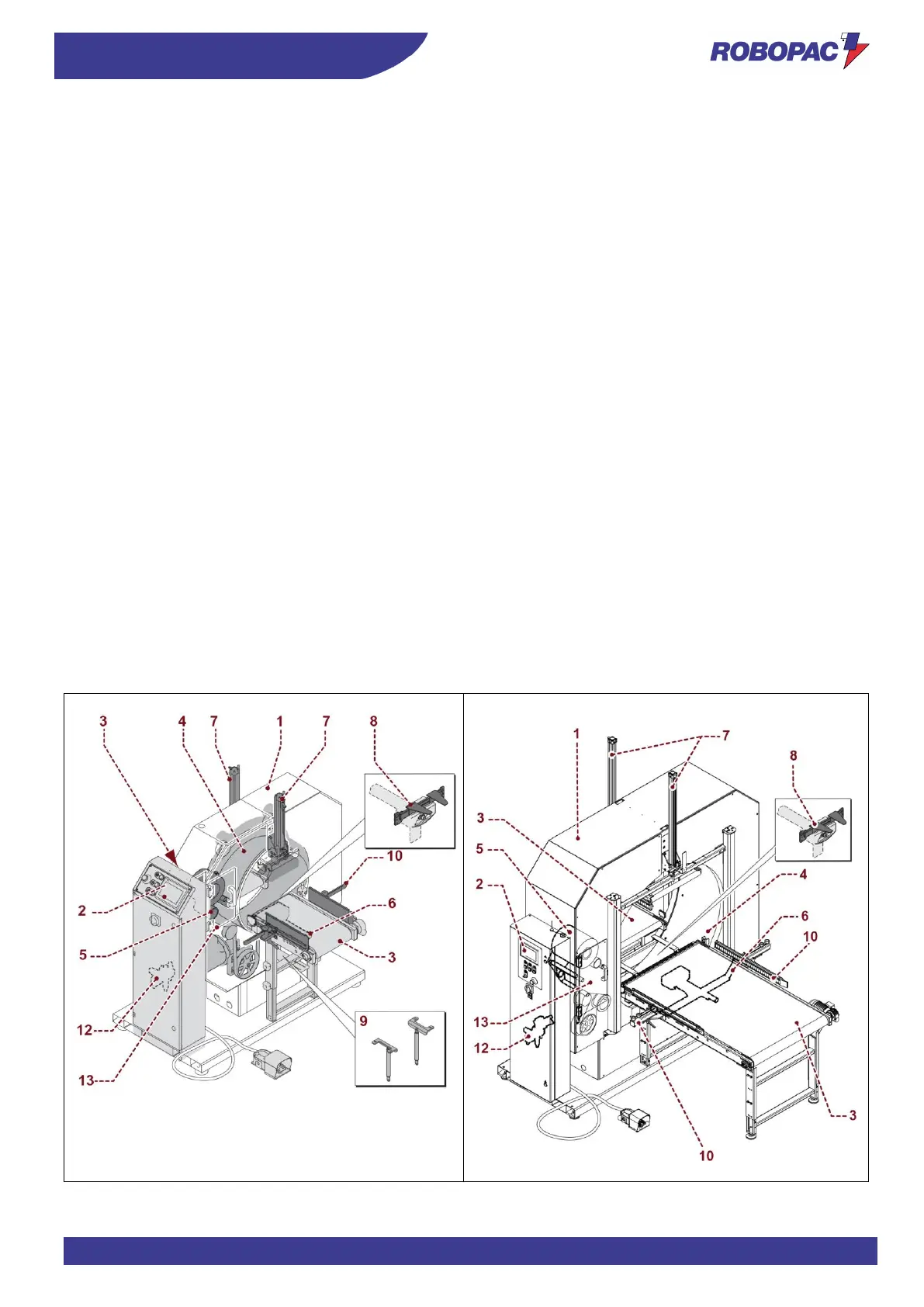

The illustration shows, for information purposes only, the machine models, and the legend lists the parts.
Legend:
1. Base:
is the main structure of the machine.
2. Control panel:
it allows activating machine functions.
3. Belt conveyor:
system used to transport the product to be wrapped, consisting of motorised roller conveyors.
4. Rotary ring unit:
it is made up of a rotary ring with a belt drive, driven by an electric motor controlled by an inverter.
5. Spool carriage unit:
it is made up of a quick load spool carriage spindle and an idler roller that controls wrapping tension.
The unit can be accessed through door (13).
6. Clamping and cutting unit:
it allows clamping and cutting the film at the end of the wrapping operation.
7. Pressers unit:
they hold the product against the conveyors.
The positioning is automatic.
8. Driving axle (Optional)
for short product support.
9. Gas spring (Optional)
to make conveyor height adjustment easier.
10. Guides (Optional)
adjust the width for product containment.
11. Spool carriage unit with dancer roller (Optional)
it is made up of a quick load spool carriage spindle and an idler roller that controls wrapping tension and by a
film recovery device.
The unit can be accessed through door (13).
12. Valve group
It controls the pneumatic movements.
