Phase 4

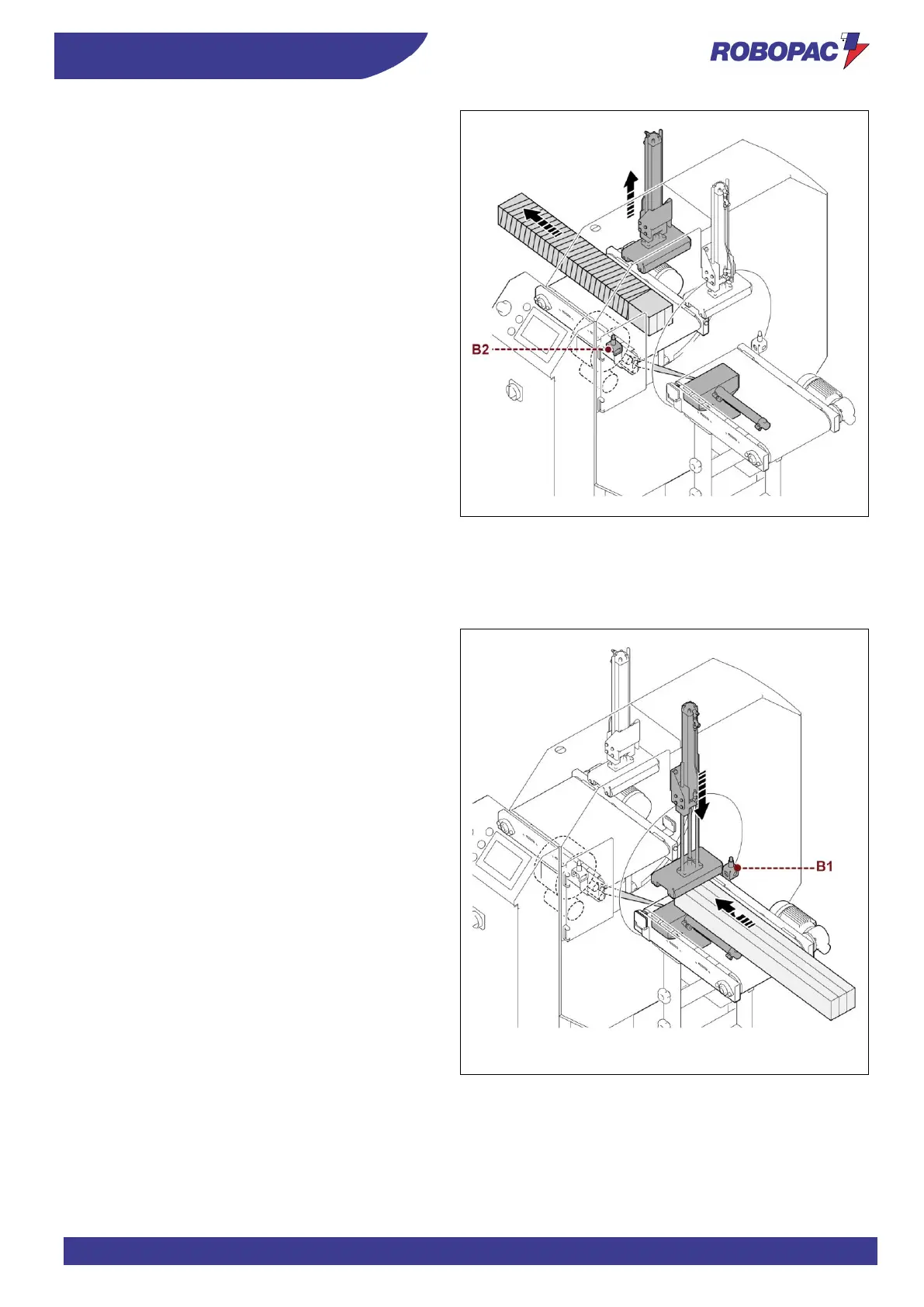

When the “head and tail wraps” count is completed, the
rotary ring stops while the clamp blocks and cuts the film
as it recedes.
The outfeed conveyor restarts.
The product disengages the photocell (B2), the outfeed
presser rises and the “conveyor unloading” timer starts.
When timer count is over, the conveyor stops and the
totally wrapped product can be removed from the
machine.
“Head - tail” wrapping
After the product has been placed on the infeed conveyor, press the button “Start” on the control panel to enable the
automatism and press the foot pedal control to start the work cycle.
Phase 1
The conveyor starts and moves the product towards the
rotary ring.
The product engages photocell (B1), the infeed presser
lowers and blocks the product, the “head positioning”
timer starts.
