INFORMATION ON ADJUSTMENTS

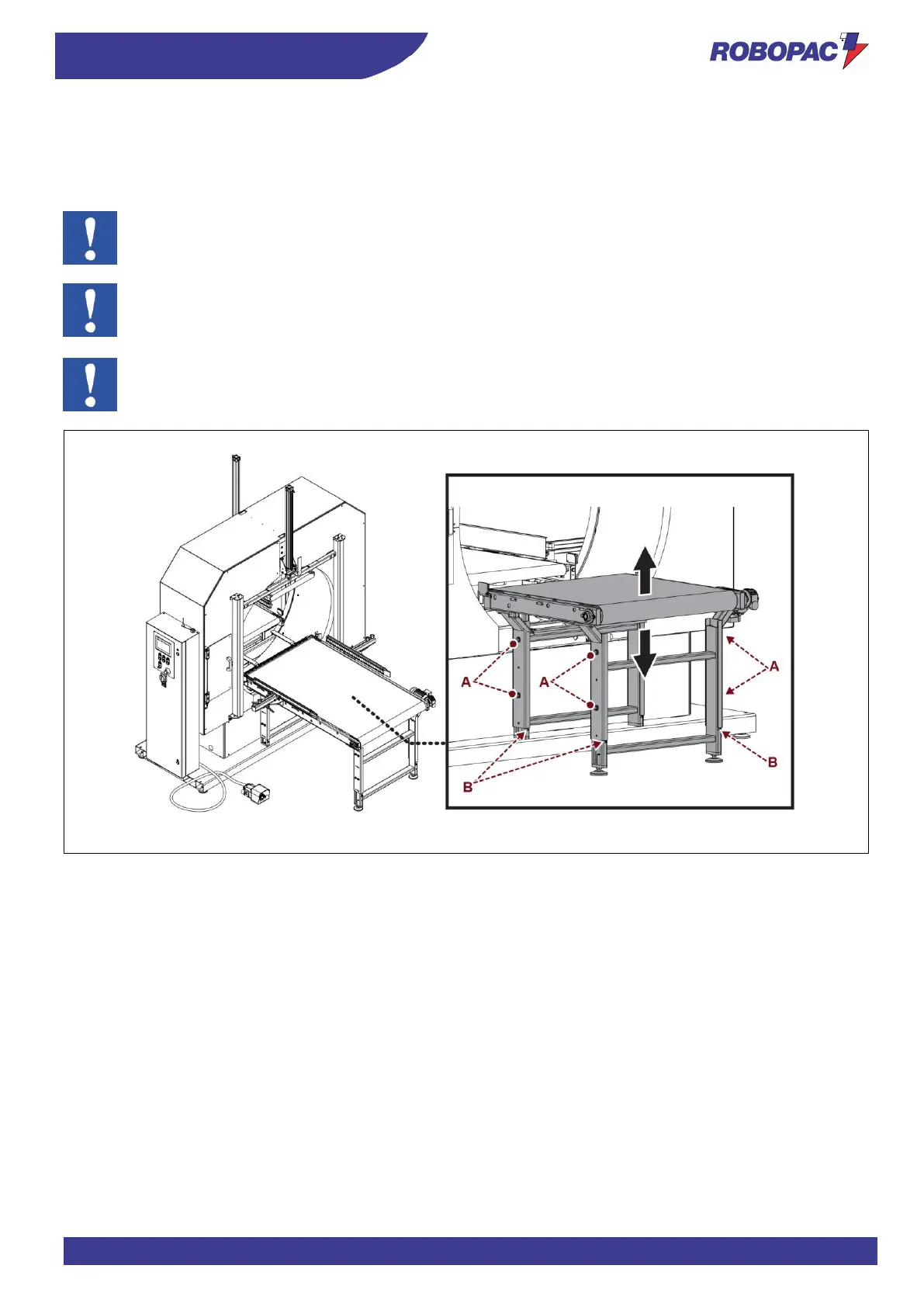

Adjustments of conveyor height (Compacta S12)
According to the product to be wrapped, adjust the infeed and outfeed conveyor height.
1. Loosen knobs (A).
2. Position the conveyors checking the height on the graduated scale (B).
3. Tighten knobs (A).
Important
Use a spirit level to adjust conveyor horizontality and coplanarity.
Important
Conveyors must be coplanar to each other; however, only in particular cases, the outfeed conveyor can
be few millimetres below the infeed one.
Important
When processing very wide products you must lift the conveyors up to their maximum height from the
ground within the product height limits (
see section 3.6. “Technical specifications”
).
