INFORMATION ON ADJUSTMENTS
ENG

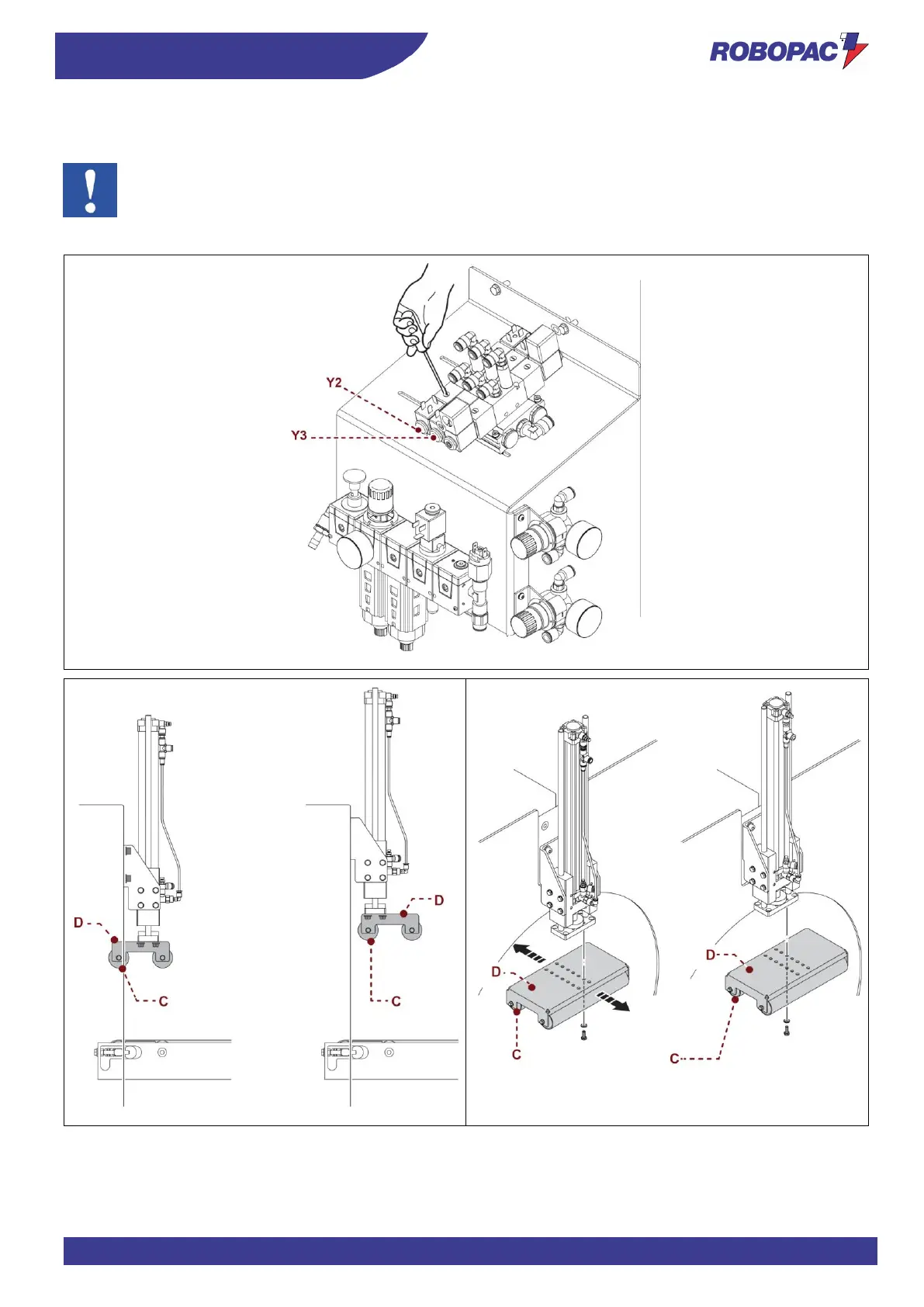

The pressers, when in the low position, must not rest against the conveyor but must keep a distance of 10/15 mm.
Check the position, operate the corresponding solenoid valve (Y2/Y3) manually with a screwdriver to lower the presser.
Important
When processing very heigh products, the roller (C) of both pressers could interfere with the rotary ring.
In this case, you must disassemble the supports (D) and mount them back into the farthest holes from the
rotary ring. Adjust the presser height.
